Carpet Retainer Replacement - Front

Carpet Retainer Replacement - Front

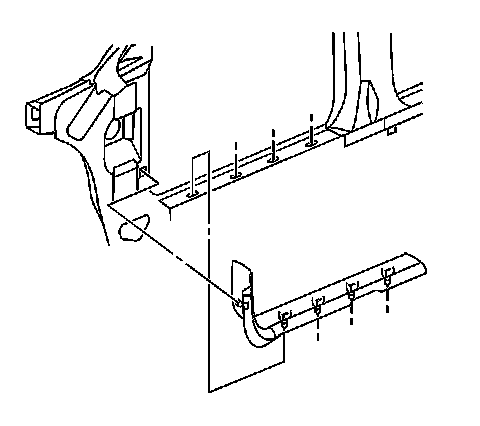

Removal Procedure

1. Disengage the front hinge pillar garnish molding to front sill plate.
2. Remove the garnish molding.




3. Gently pry upward the front sill plate.
4. Remove the front sill plate.



Installation Procedure





1. Install the front sill plate.
2. Press downward the sill plate to secure the snap clips.
3. Install the front hinge pillar garnish molding.
4. Press inward to secure the retainer.
