Armrest Replacement - Rear Seat

Armrest Replacement - Rear Seat

Removal Procedure

1. Remove the seat cushion. Refer toSeat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) .
2. Remove the seat back. Refer toSeat Back Replacement - Rear (Seat Back Replacement - Rear) .

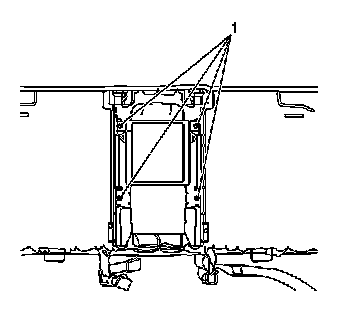

3. Remove the 4 fasteners (1) from the rear of the seatback.
4. Remove the center armrest.



Installation Procedure

1. Install the center armrest.




2. Use the 4 fasteners (1) in order to attach the armrest to the seatback.
3. Install the seat back. Refer toSeat Back Replacement - Rear (Seat Back Replacement - Rear) .
4. Install the seat cushion. Refer toSeat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) .
