Front Bumper Shock Absorber: Service and Repair

Energy Absorber Replacement - Front

Removal Procedure





1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .

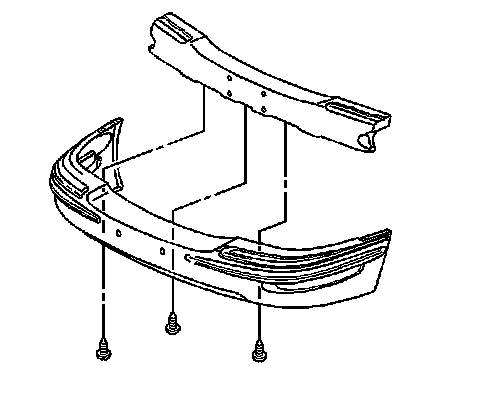

2. Remove the fasteners, using a # 3 Robertson drive bit.
3. Remove the energy absorber from the fascia.



Installation Procedure





1. Align the energy absorber to front bumper fascia.
2. Install the fasteners.
3. Install the front bumper fascia. Refer toFascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .
