Front Bumper Reinforcement: Service and Repair

Impact Bar Replacement - Front Bumper

Removal Procedure

1. Remove the front fascia from the vehicle. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .

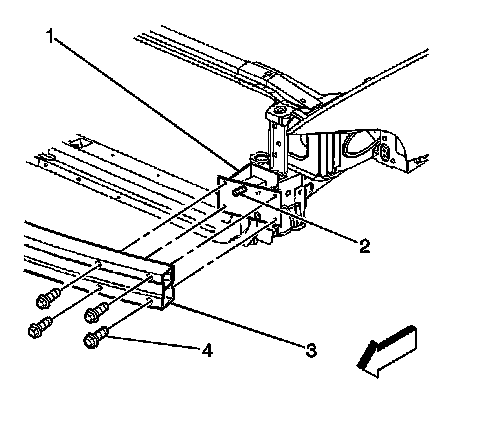

2. Remove the bolts (4) that retain the impact bar (3) to the bumper brackets.
3. Remove the impact bar (3) from the vehicle.



Installation Procedure





1. Position the impact bar (3) to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts (4) to retain the impact bar (3) to the bumper brackets.

Tighten the bolts to 25 N.m (18 lb ft).

3. Install the front fascia to the vehicle. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .
