Automatic Transmission Mount Replacement - Front

Automatic Transmission Mount Replacement- Front

Removal Procedure





1. Remove the front transmission mount bracket.
2. Raise and support the vehicle.

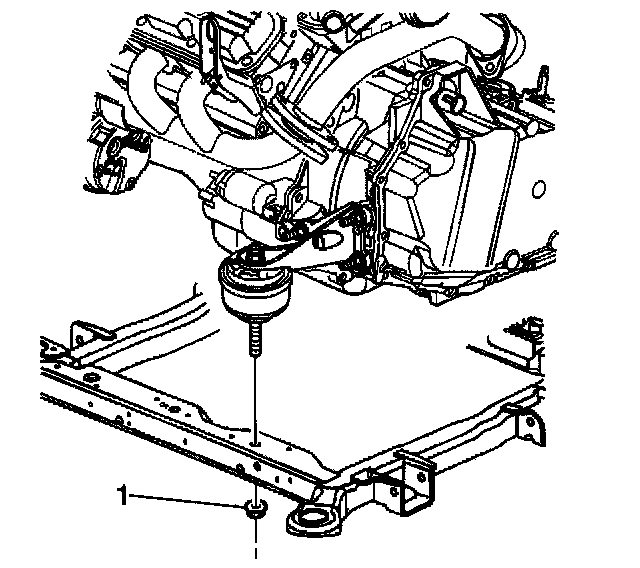

3. Remove the nut (1) securing the front transmission mount to the frame.
4. Lower the vehicle.
5. Remove the front transmission mount from the vehicle.

Installation Procedure





1. Insert the front transmission mount stud (long) through the hole in the engine frame.
2. Raise and support the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

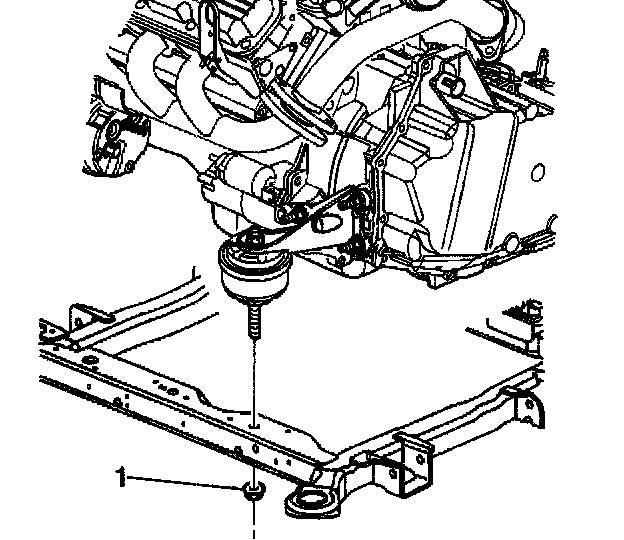

3. Install the nut (1) securing the front transmission mount to the frame.
^ Tighten the front transmission mount nut to 70 Nm (52 ft. lbs.).
4. Lower the vehicle.
5. Install the front transmission mount bracket.
