Engine Mount Replacement - Right
Engine Mount Replacement - RightRemoval Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Support the engine assembly with a suitable jack.

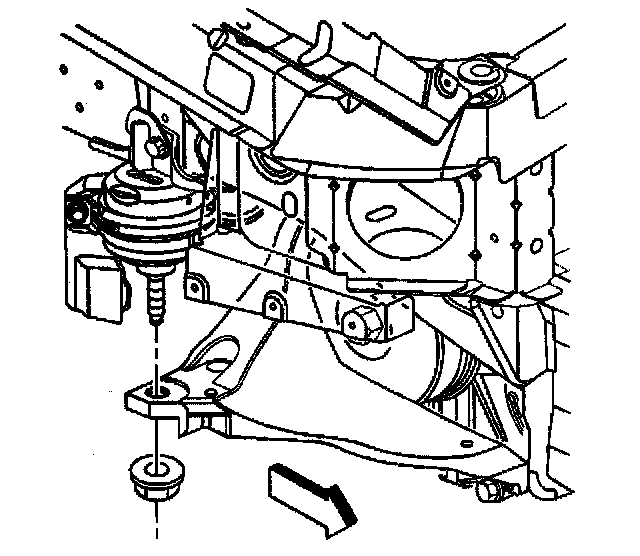

3. Remove the nut securing the right engine mount to the right engine mount bracket.
4. Lower the jack allowing the engine to lower slightly.

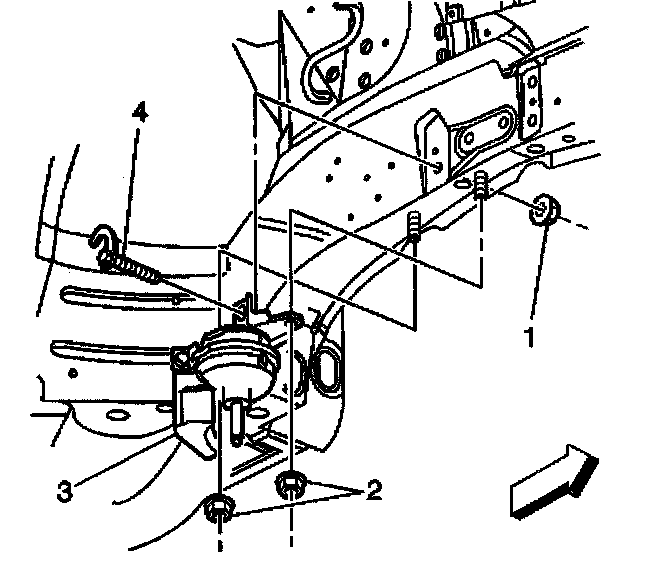

5. Remove the bolt (4) securing the mount to the body frame rail.
6. Remove the two nuts (2) securing the mount to the body frame rail.
7. Remove the right engine mount (3).
Installation Procedure

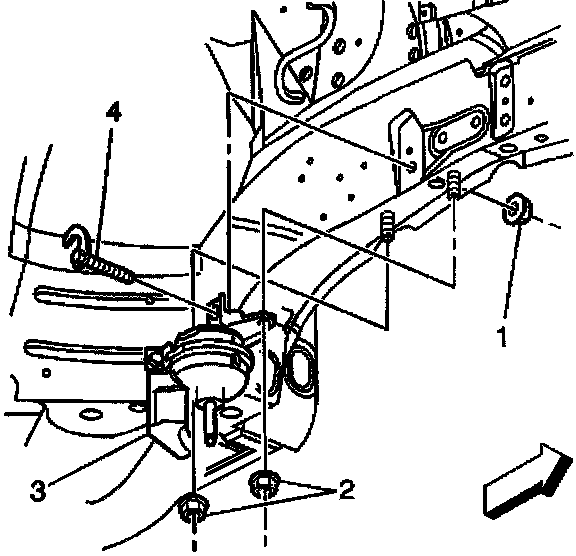

1. Position the right engine mount (3) to the body frame rail.
2. Install the mount attaching bolt (4) and nut (1) to the body frame rail.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the two nuts (2) securing the right engine mount to the body frame rail.
^ Tighten the right engine mount to body frame rail nuts (1, 2) to 70 Nm (52 ft. lbs.).
4. Raise the engine into position.

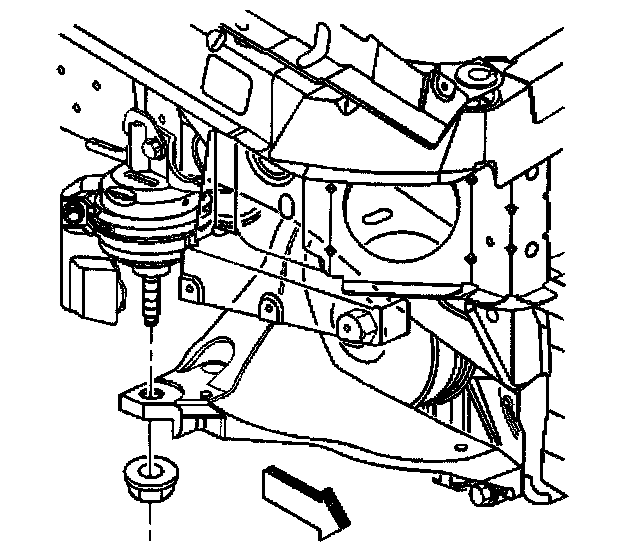

5. Install the nut securing the right engine mount to the right engine mount bracket.
^ Tighten the right engine mount nut to 80 Nm (59 ft. lbs.).
6. Remove the engine support jack.
7. Lower the vehicle.
