Home
>>
Buick
>>
2004
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>

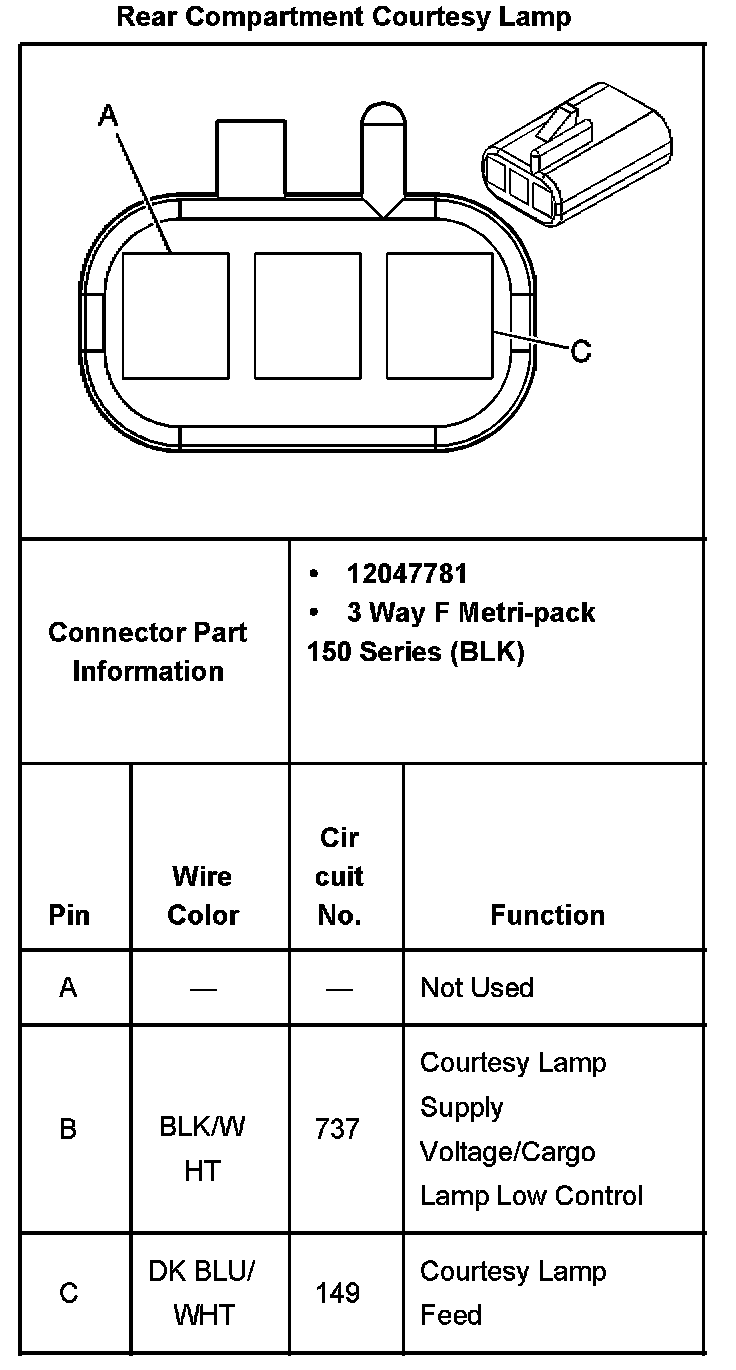

Rear Compartment Courtesy Lamp
Rear Compartment Courtesy Lamp
Rear Compartment Courtesy Lamp:
