Rear Side Door Bottom Auxiliary Sealing Strip Replacement

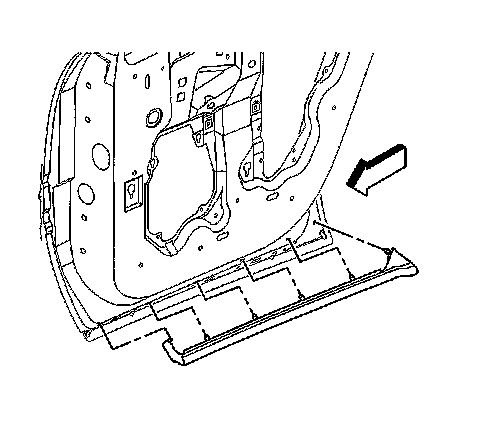

Sealing Strip Replacement - Rear Door Bottom Auxiliary

Removal Procedure




1. Remove the rear door bottom sealing strip retainers.
2. Remove the rear door bottom sealing strip.

Installation Procedure




1. Install the rear door bottom sealing strip on to the inside lower door edge.
2. Secure the rear door bottom sealing strip by inserting the retainers into the holes in the lower door panel.
