Cupholder Replacement - Front Seat Armrest

Armrest Cup Holder Replacement - Front Seat

Removal Procedure

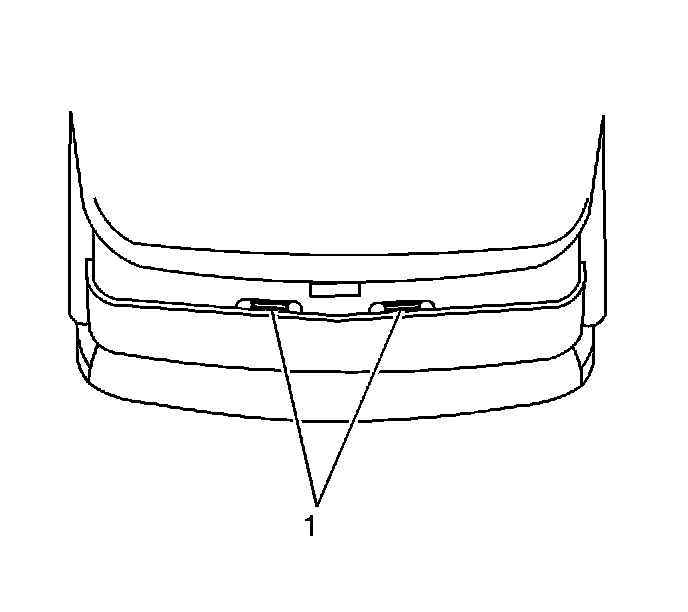

1. Partially open the cupholder assembly to obtain access to the two locking tabs (1) at the base of the cupholder assembly.

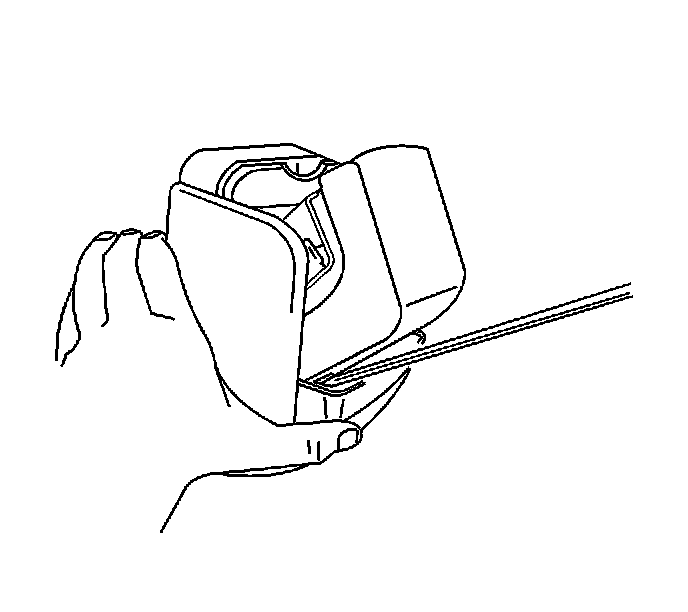

2. Insert a flat bladed screw driver and twist slightly in order to release the lock tab. Release both tabs.

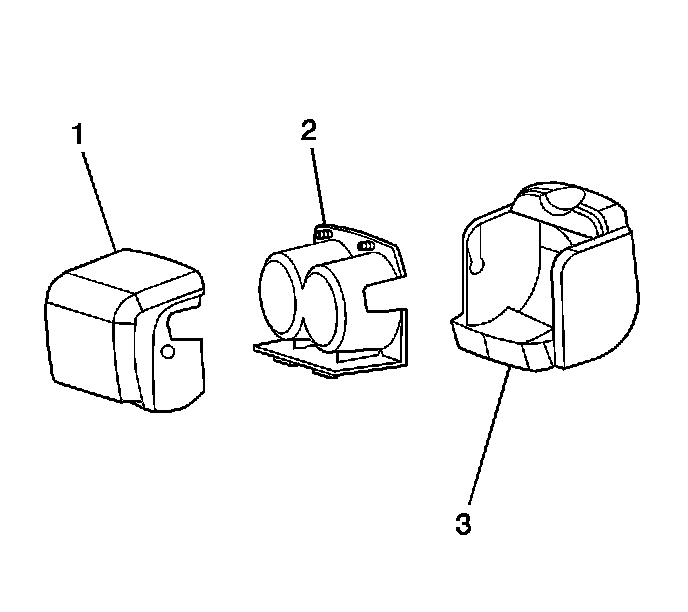

3. Remove cupholder assembly (2) from storage armrest assembly.

Installation Procedure




1. Align the cupholder assembly tabs (2) with the armrest assembly slots. Insert tabs into slots.
2. Apply thumb pressure to the base of the cupholder assembly until cupholder assembly locking tabs engage.
3. Verify proper operation of the cupholder assembly.
