Heater Hose Replacement - Inlet

TOOLS REQUIRED
J 38185 Hose Clamp Pliers

REMOVAL PROCEDURE
1. Drain the cooling system.
2. Remove the fuel injector sight shield.




3. Use J 38185 in order to reposition the heater hose inlet clamp.
4. Disconnect the heater inlet hose (3) from the inlet pipe.




5. Use J 38185 in order to reposition the heater core inlet hose clamp.
6. Disconnect the heater inlet hose from the heater core.
7. Remove the heater inlet hose.

INSTALLATION PROCEDURE
1. Install the heater inlet hose.




2. Connect the heater inlet hose to the heater core.
3. Use J 38185 in order to reposition the heater core hose inlet clamp.

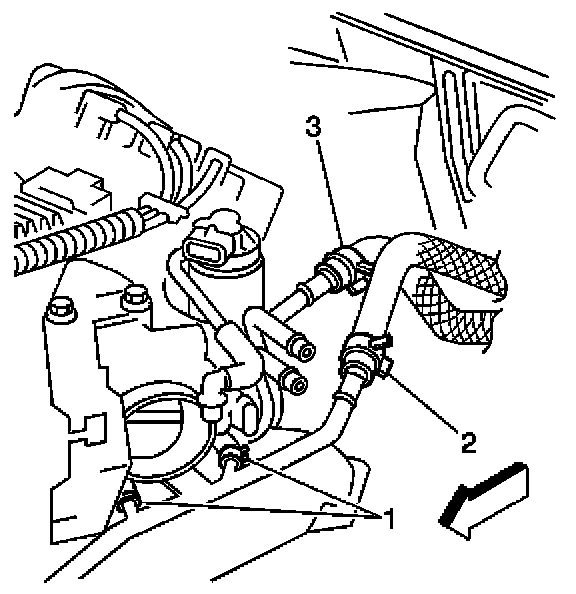

IMPORTANT: Reposition heater core hose clamps in the indicated location.




4. Connect the heater inlet hose (3) to the inlet pipe.
5. Use J 38185 in order to reposition the heater hose clamp.
6. Install the fuel injector sight shield.
7. Refill the cooling system.
