Engine Mount Replacement
Engine Mount ReplacementRemoval Procedure
1. Disconnect the battery ground (negative) cable.
2. Remove the throttle body air inlet duct.
3. Remove the engine mount struts.
4. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
5. Remove the three-way catalytic converter pipe from the right (rear) exhaust manifold.
6. Remove the right front wheel and tire.
7. Remove the right engine splash shield.

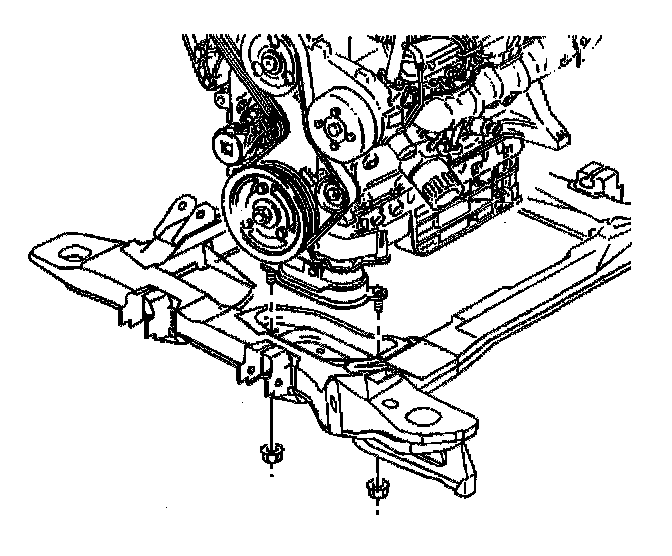

8. Remove the engine mount lower nuts.
9. Raise the engine, using the engine support fixture.

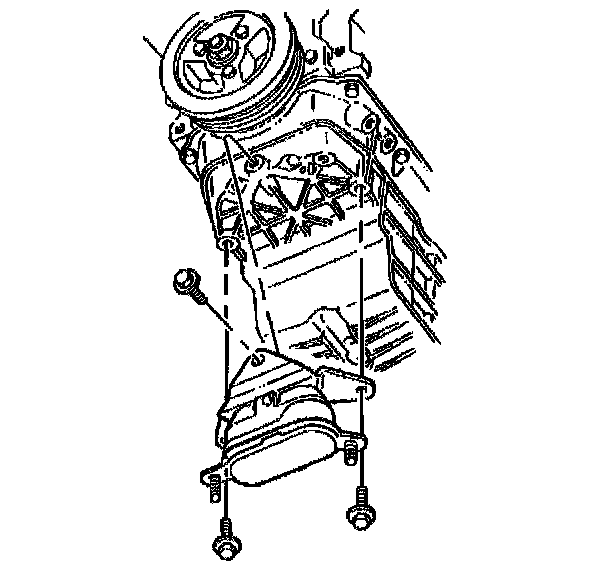

10. Remove the engine mount bracket-to-oil pan bolts.
11. Remove the engine mount and the engine mount bracket.

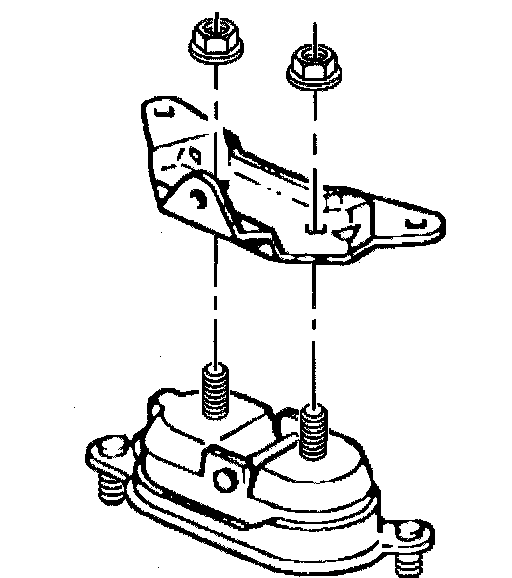

12. Remove the engine mount bracket.
Installation Procedure

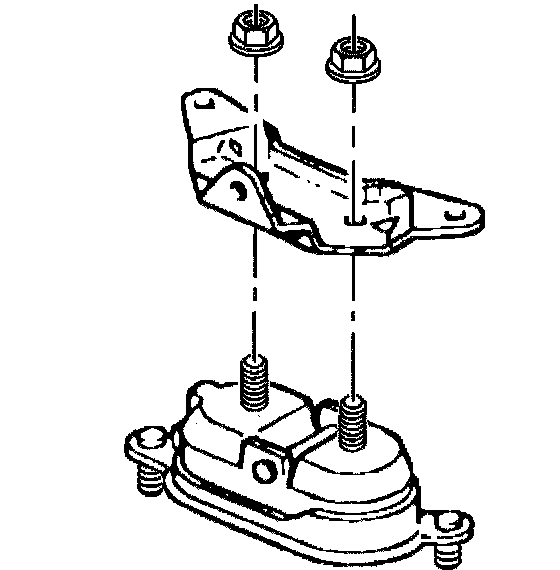

1. Install the engine mount bracket.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the engine mount bracket with the engine mount to the oil pan.

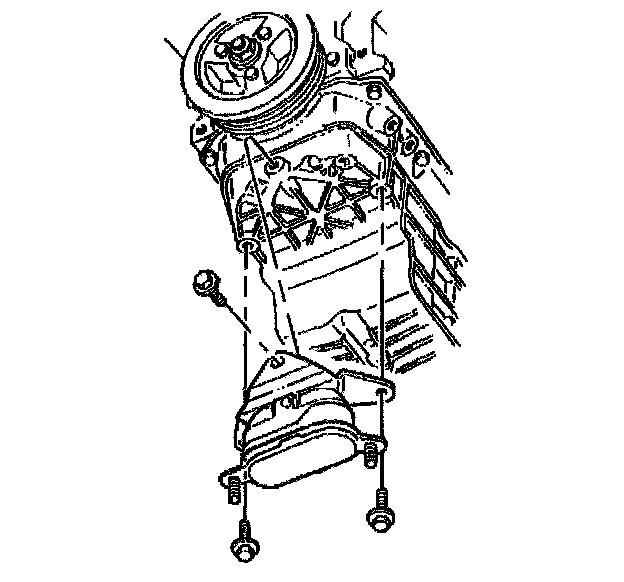

3. install the engine mount bracket-to-oil pan bolts.
^ Tighten the engine mount bracket bolts to 58 Nm (43 ft. lbs.).
4. Lower the engine.

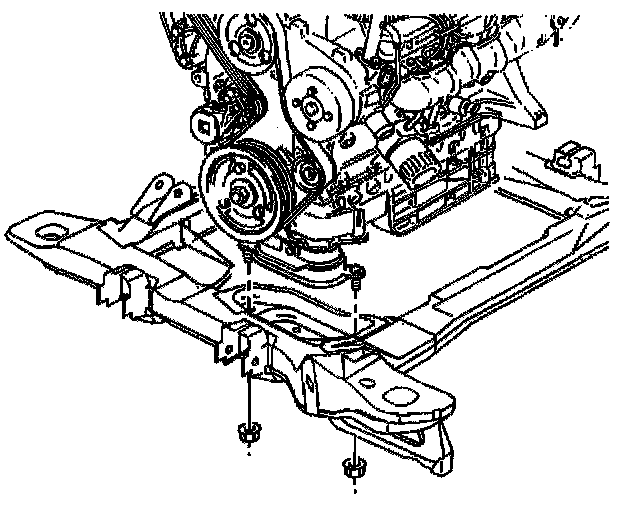

5. Install the engine mount lower nuts.
^ Tighten the engine mount lower nuts to 43 Nm (32 ft. lbs.).
6. Install the right engine splash shield.
7. Install the right front wheel and tire.
8. Connect the three-way catalytic converter pipe to the right (rear) exhaust manifold.
9. Lower the vehicle.
10. Remove the engine support fixture.
11. Install the engine mount struts.
12. Install the throttle body air inlet duct.
13. Connect the battery ground (negative) cable.
