Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

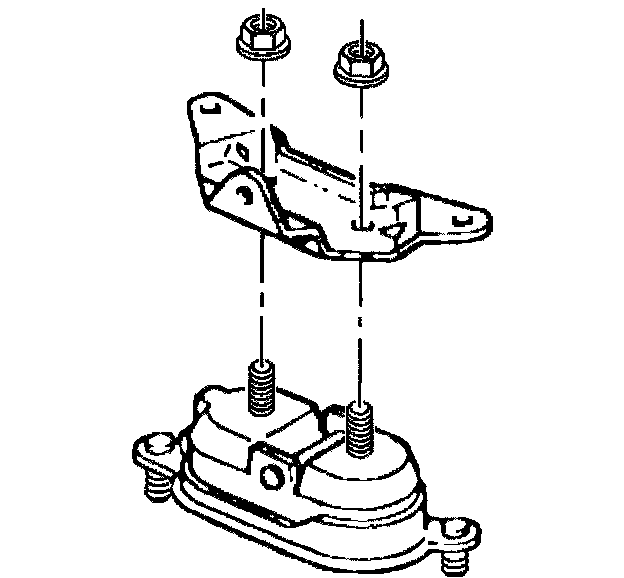

Removal Procedure





1. Remove the engine mount.
2. Remove the engine mount upper nuts.
3. Remove the engine mount bracket from the engine mount.

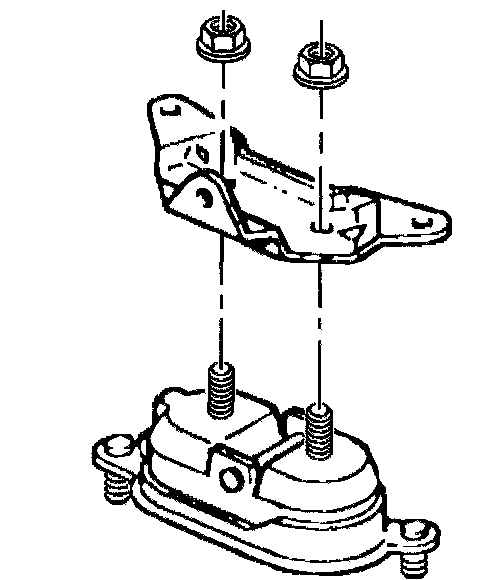

Installation Procedure





1. Install the engine mount bracket to the engine mount.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount upper nuts.
^ Tighten the engine mount upper nuts to 47 Nm (35 ft. lbs.).
3. Install the motor mount.
4. Lower the vehicle.
5. Lower the engine.
6. Connect the battery ground (negative) cable.
