Home >> Buick >> 2004 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Stop Lamp and Torque Signals

Stop Lamp and Torque Signals

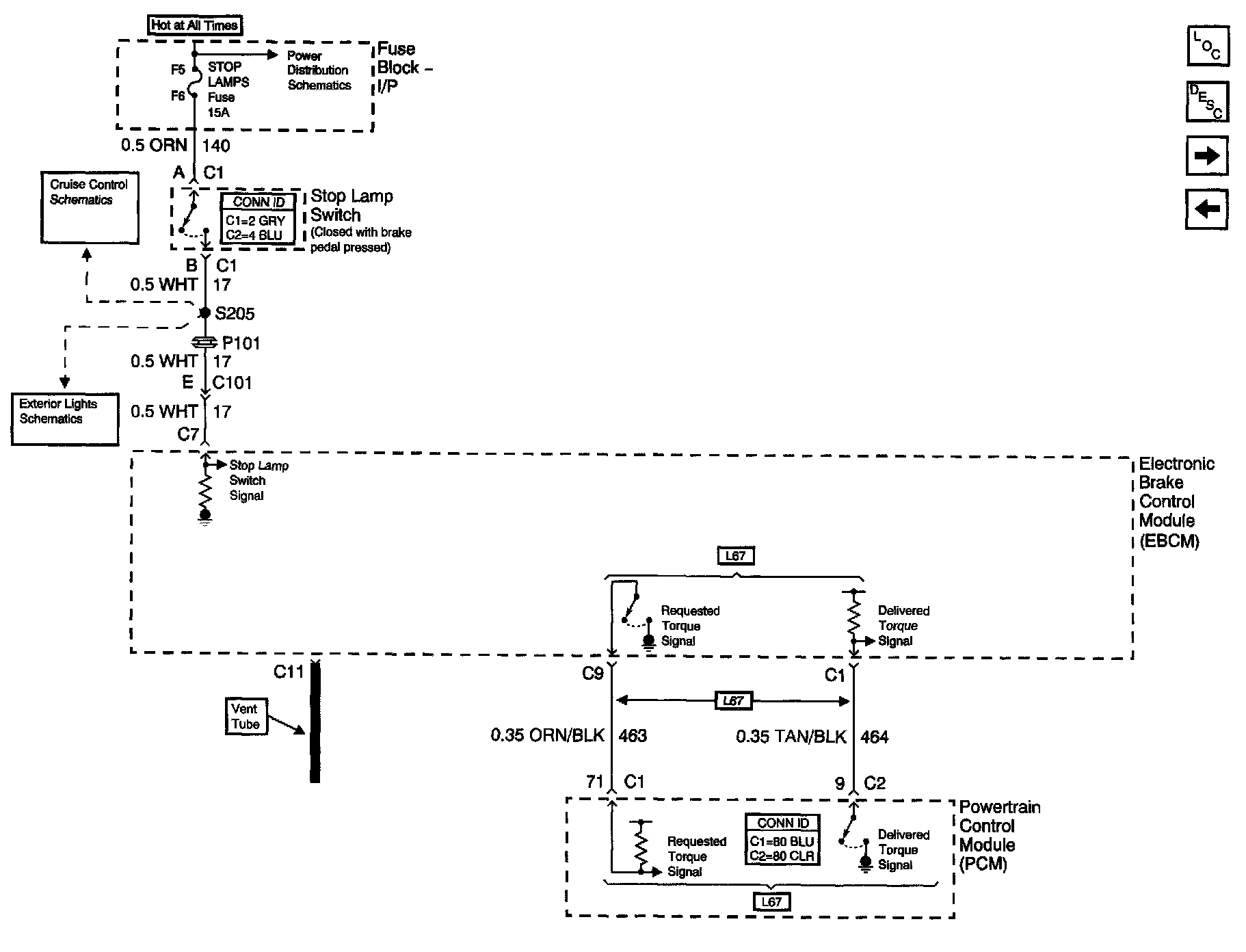

ABS Schematics (Stop Lamp And Torque Signals):
