Antilock Brakes / Traction Control Systems
>>
Power and Ground
Power and Ground

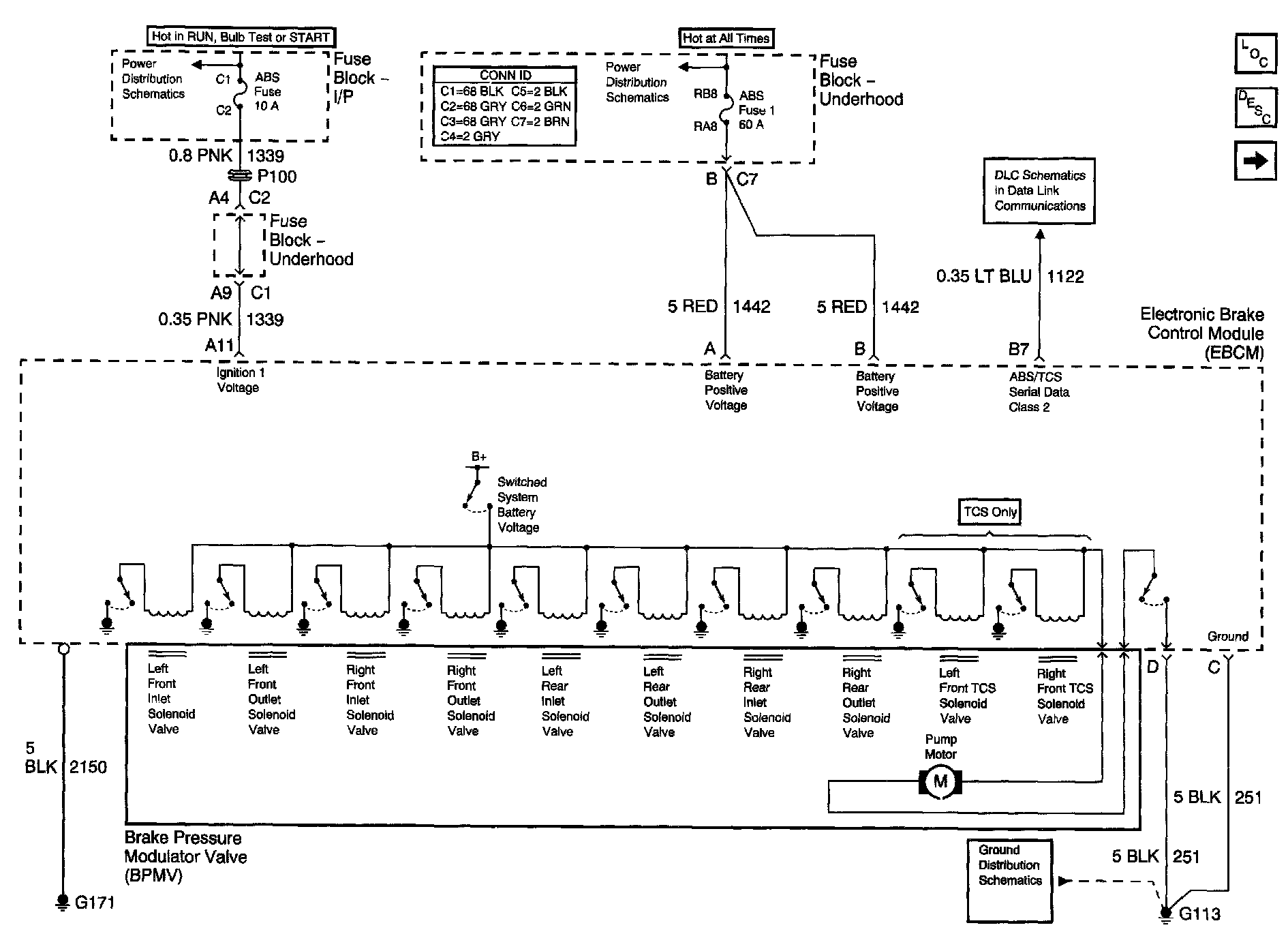

ABS Schematics: Power, Ground, And Serial Data:
