Buick
>>
2004
>>
Century V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C215 - C242
>>
C216
C216

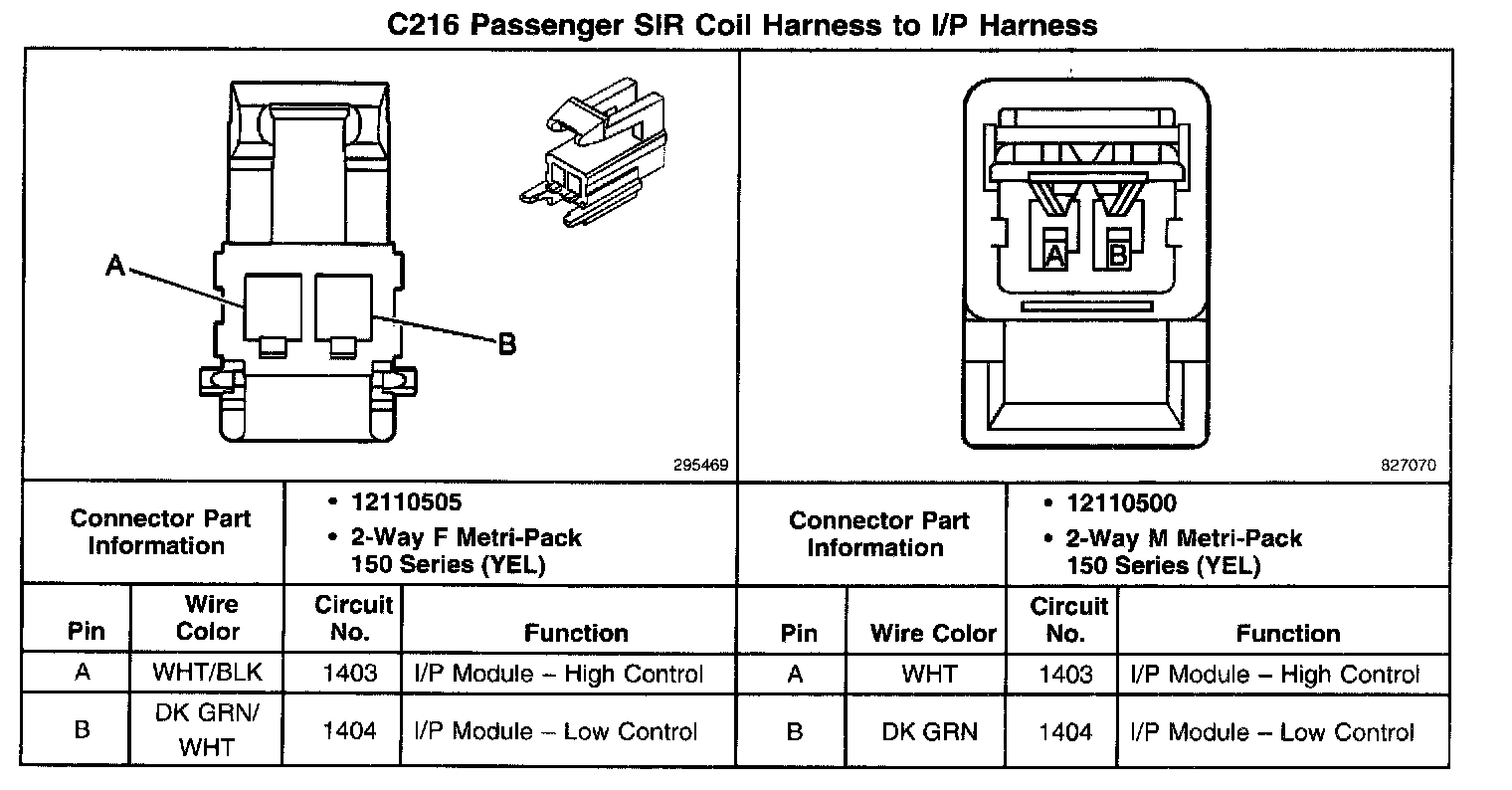

C216 Passenger SIR Coil Harness To I/P Harness:
