Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

Fluid Filler Tube Replacement
Removal Procedure





1. Remove the transaxle oil level indicator.
2. Raise and support the vehicle.
3. Remove the catalytic converter from the exhaust manifold.

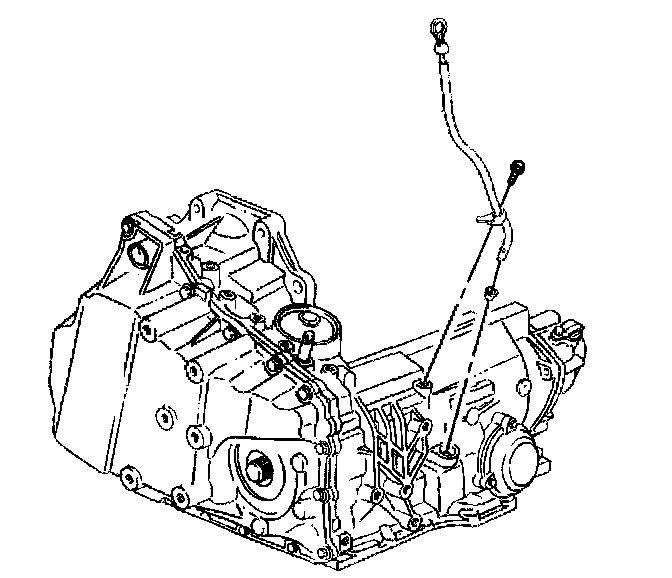

4. Remove the fluid filler tube bracket bolt.
5. Remove the fluid filler tube.

Installation Procedure

Important: Do NOT place the fluid filler tube seal on the fluid filler tube when installing the tube or damage to the seal will result.





1. Install the fluid filler tube seal in the transaxle.
2. Position the fluid filler tube.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the fluid filler tube bracket bolt.
Tighten the bolt to 13 Nm (115 inch lbs.).
4. Install the catalytic converter.
5. Lower the vehicle.

Notice: Refer to Do Not Overfill the transmission Notice in Cautions and Notices.

6. Check and fill the transaxle as necessary.
7. Install the transaxle oil level indicator.
8. Inspect for fluid leaks.
