Front Suspension

STABILIZER SHAFT LINK REPLACEMENT

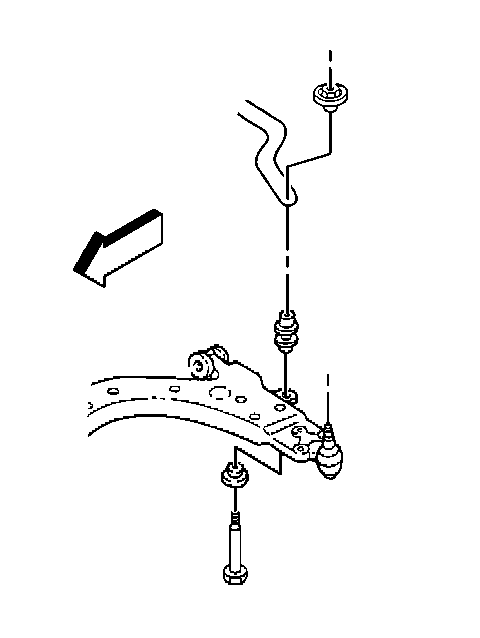

REMOVAL PROCEDURE
1. Raise the vehicle and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.




3. Remove the stabilizer shaft link bolt and nut.
4. Remove the stabilizer shaft link from the vehicle.

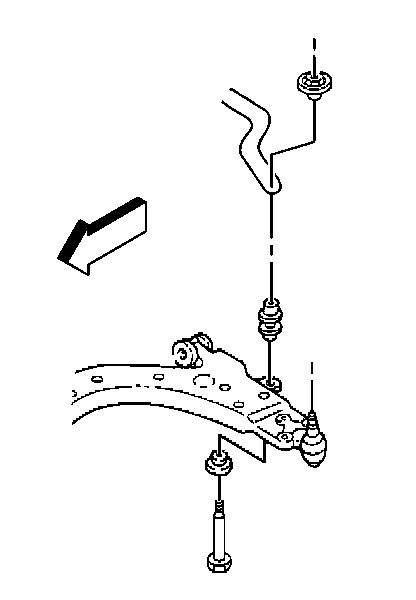

INSTALLATION PROCEDURE




1. Install the stabilizer link into the vehicle.
2. Install the stabilizer shaft link bolt and nut.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the stabilizer shaft link nut to 23 N.m (17 lb ft).

3. Install the tire and wheel assembly.
4. Lower the vehicle.
