Front Suspension

STABILIZER SHAFT INSULATOR REPLACEMENT

REMOVAL PROCEDURE
1. Raise and support the vehicle. Refer to Vehicle Lifting.

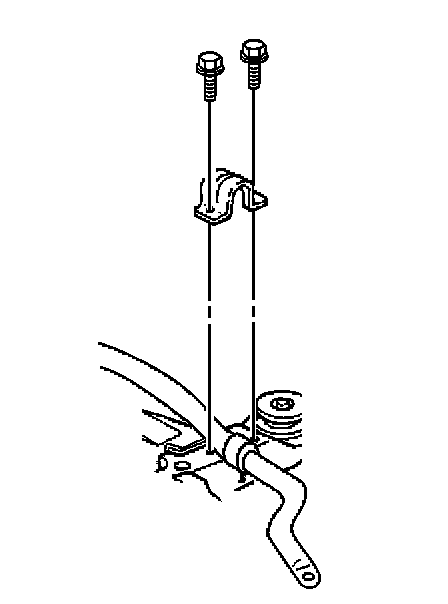

2. Remove the left and right side stabilizer shaft insulator bracket bolts.
3. Remove the left and right side stabilizer shaft insulator brackets.

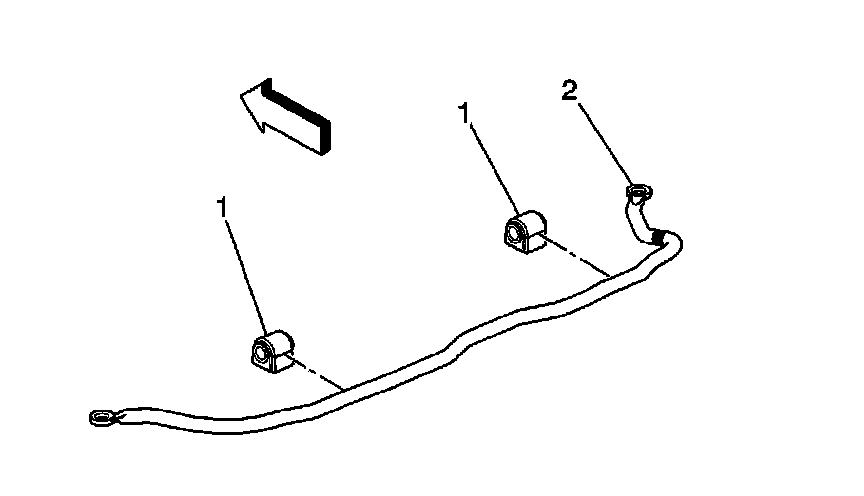

4. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).

INSTALLATION PROCEDURE

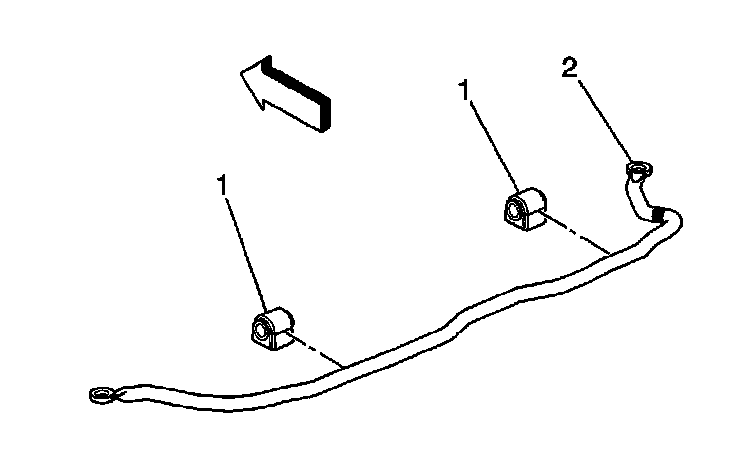

1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).

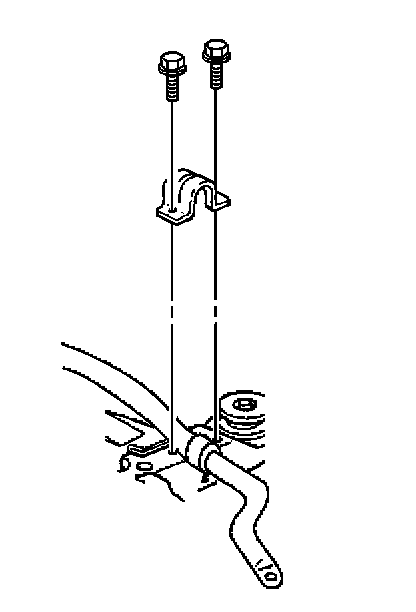

2. Install the left and right side stabilizer shaft insulator brackets.
3. Install the left and right side stabilizer shaft insulator bracket bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

4. Lower the vehicle.
