Seat Belt Buckle Replacement - Center Front

REMOVAL PROCEDURE




1. Remove the front seat.

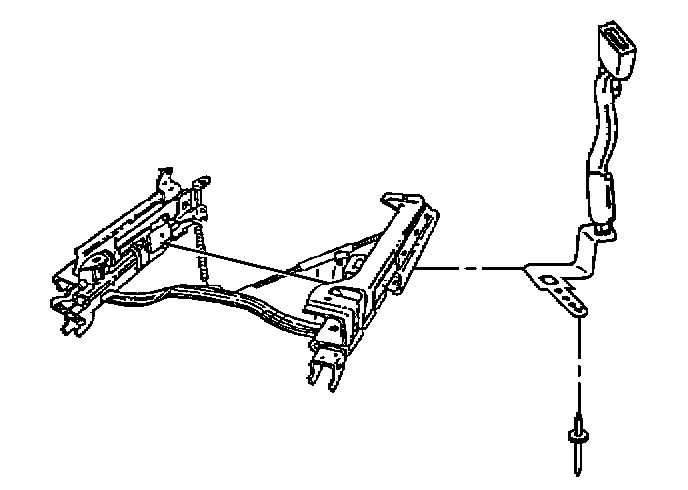

2. Drill out the rivet that retain the seat belt buckle to the rear of the front seat track using a 1/4 inch (6.35 mm) drill bit.

IMPORTANT: When drilling out the rivet do not enlarge the rivet hole.

3. Remove the seat belt buckle from the front seat track.

INSTALLATION PROCEDURE




1. Install the seat belt buckle to the front seat track.

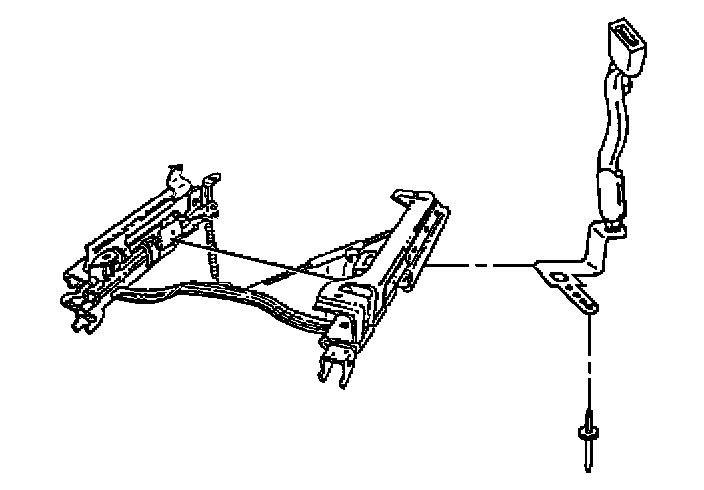

2. Install the new rivet to secure the seat belt buckle to the rear of the front seat track.

IMPORTANT: The rivet is only used for installation alignment.

3. Install the front seat.
