Ash Tray Lamp: Service and Repair

ASHTRAY LAMP BULB REPLACEMENT

REMOVAL PROCEDURE




1. Open the ashtray.

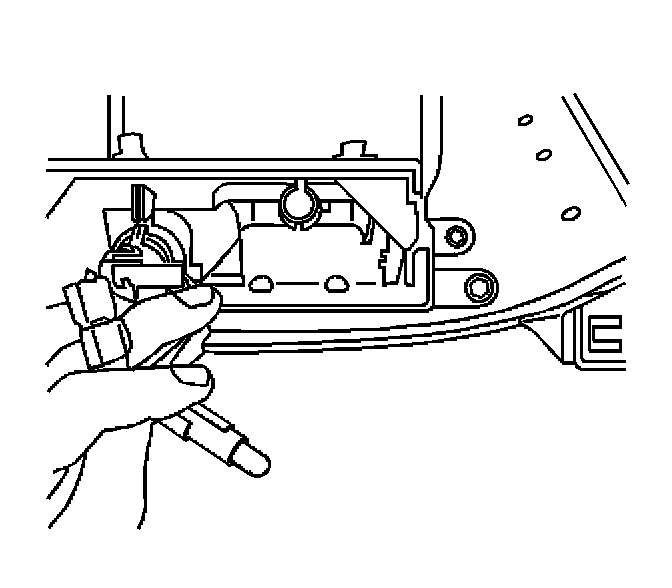

2. Rotate the socket clockwise. Pull the socket from the housing.
3. Pull the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.

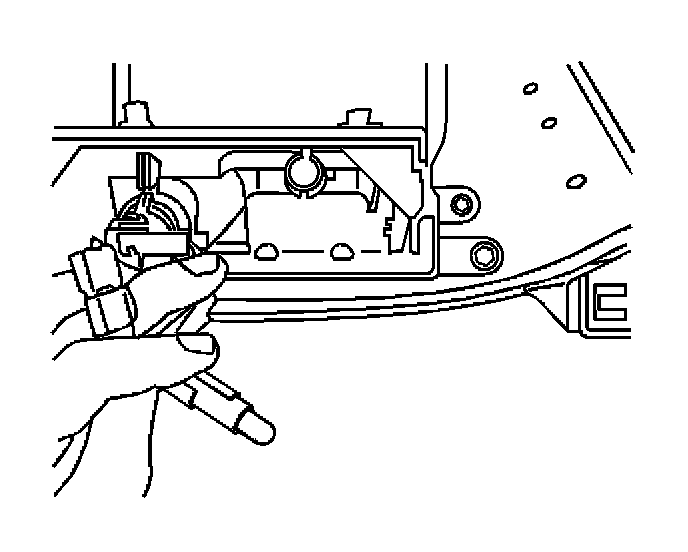

2. Press the socket into the housing. Rotate the socket counterclockwise.
3. Close the ashtray.
