Fan Shroud: Service and Repair

Fan Shroud Replacement
Removal Procedure





1. Remove the cooling fans.
2. Disconnect the coaling fan wiring harness from each cooling fan motor.
3. Remove the cooling fan electrical harness from the fan shroud.

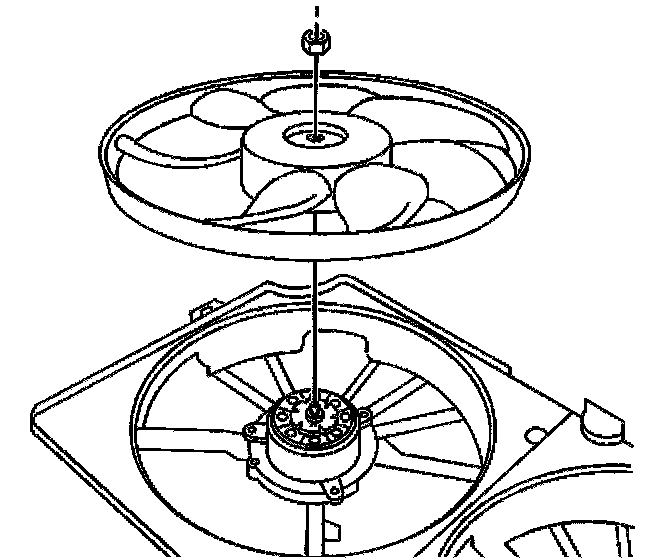

4. Remove the cooling fan blade nuts.
5. Remove the cooling fan blades.

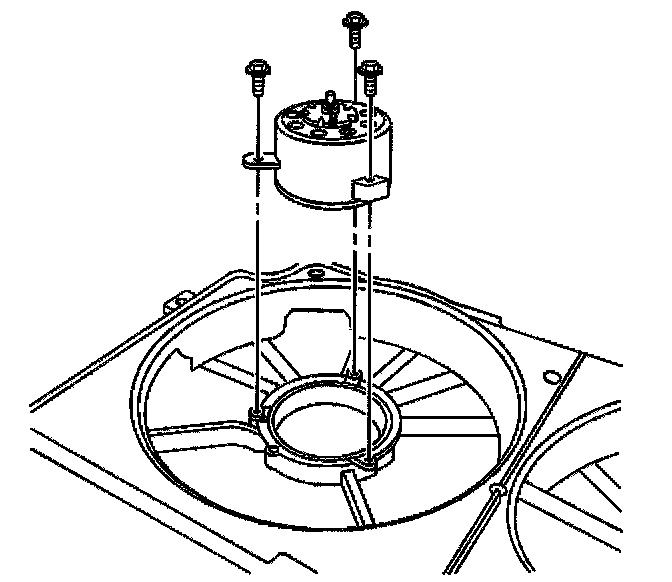

6. Remove the cooling fan motors bolts.
7. Remove the cooling fan motors from the fan shroud.

Installation Procedure

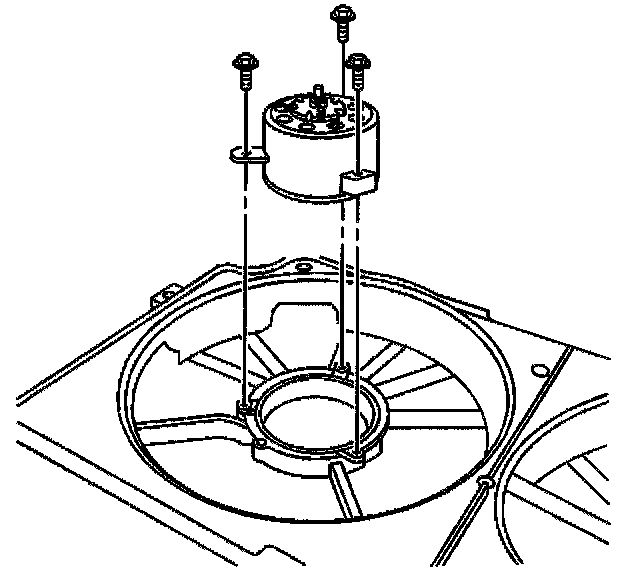

1. Install the cooling fan motors onto the fan shroud.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the cooling fan motors bolts.
^ Tighten the bolts to 6 Nm (53 inch lbs.).





Caution: If a fan blade is bent or damaged in any way, do not repair or reuse the damaged part. Always replace a bent or damaged fan blade. Fan blades that have been damaged can not be assured of proper balance and could fail and fly apart during subsequent use. This creates an extremely dangerous situation.
The fan blades must remain in proper balance. You cannot assure fan blade balance once a fan blade has been bent or damaged. A fan blade that is not in proper balance could fail and fly apart during use, creating an extremely dangerous situation.

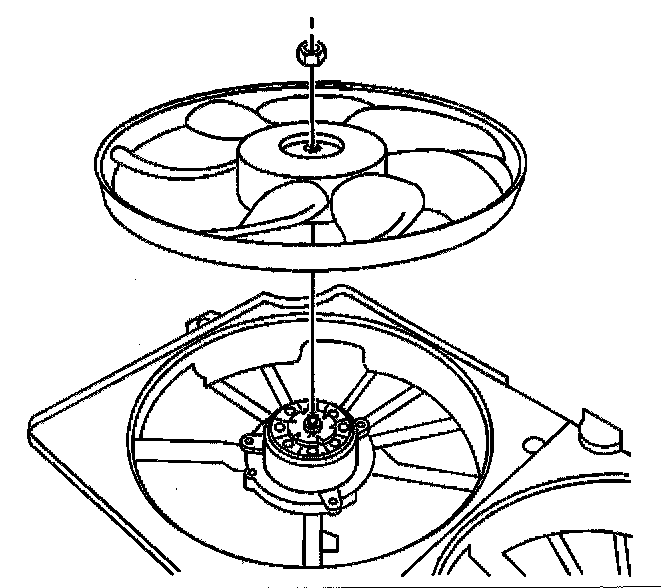

3. Install the cooling fan blades.
4. Install the cooling fan blade nuts.
^ Tighten the nuts to 6 Nm (53 inch lbs.).
5. Install the cooling fan electrical harness to the fan shroud.
6. Connect the cooling fan wiring harness to each cooling fan motor.
7. Install the cooling fans.
