Home
>>
Buick
>>
2003
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Global Positioning System
Global Positioning System

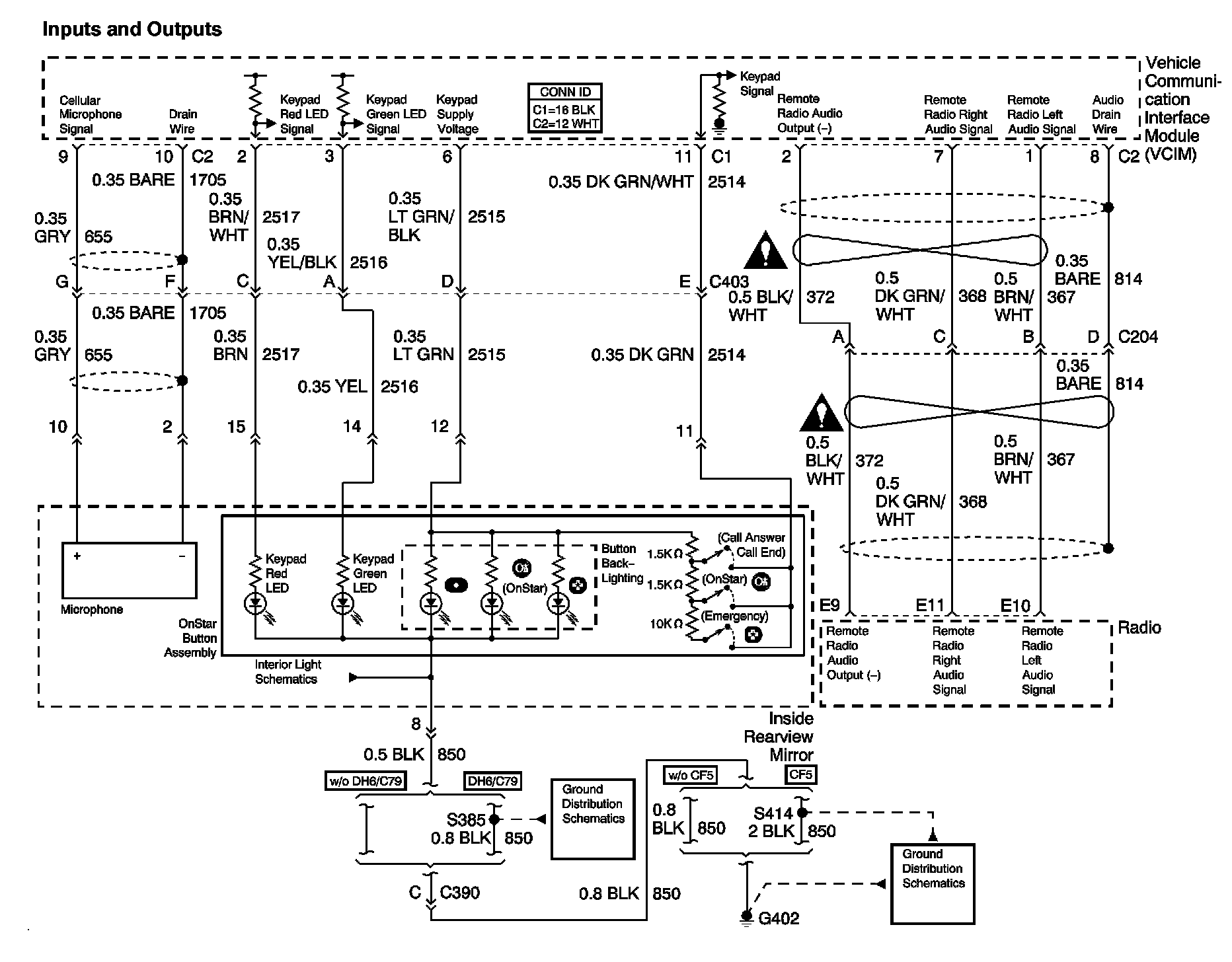

Onstar Diagram 1:
Onstar Diagram 2:
