Home
>>
Buick
>>
2003
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>
HVAC Manual
HVAC Manual

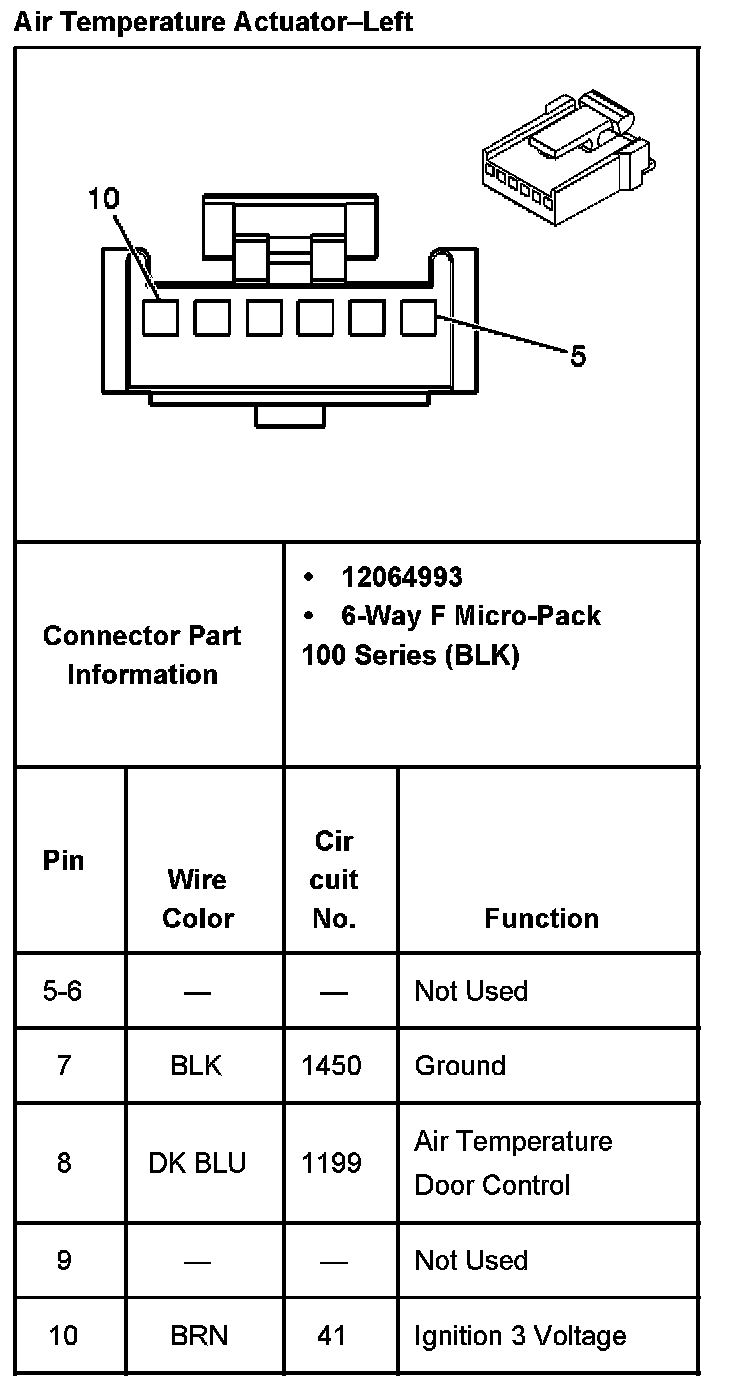

Air Temperature Actuator-left:

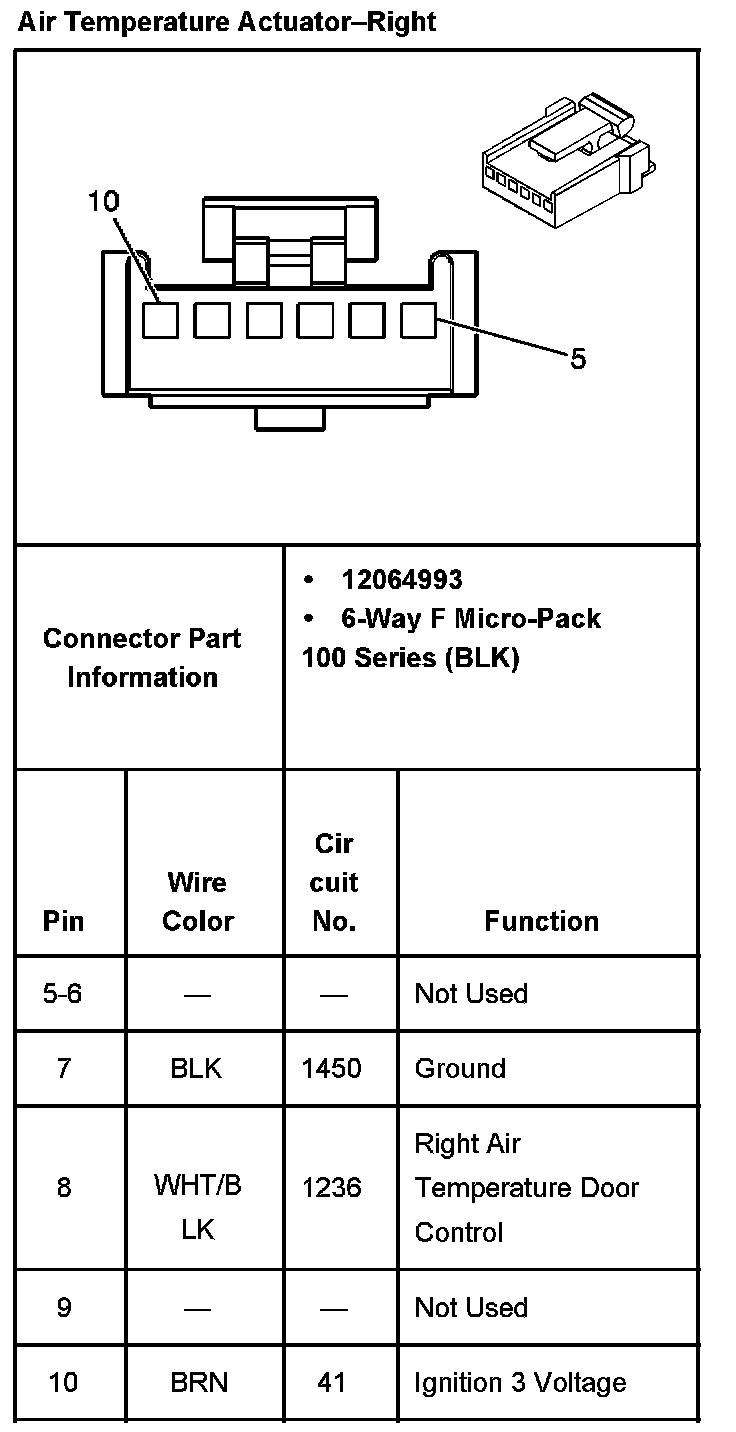

Air Temperature Actuator-right:
