Home
>>
Buick
>>
2003
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

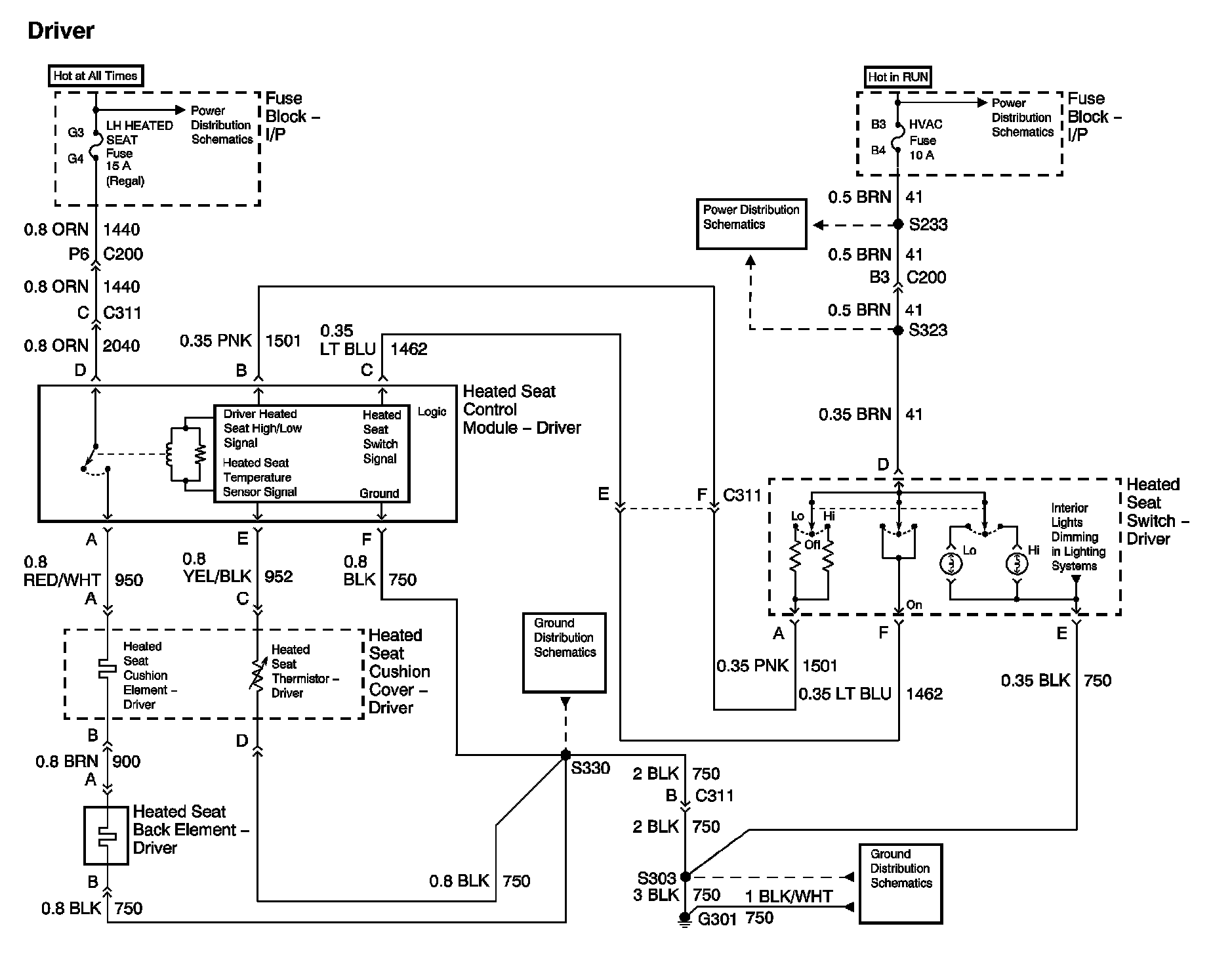

Heated Seats Diagram 1:

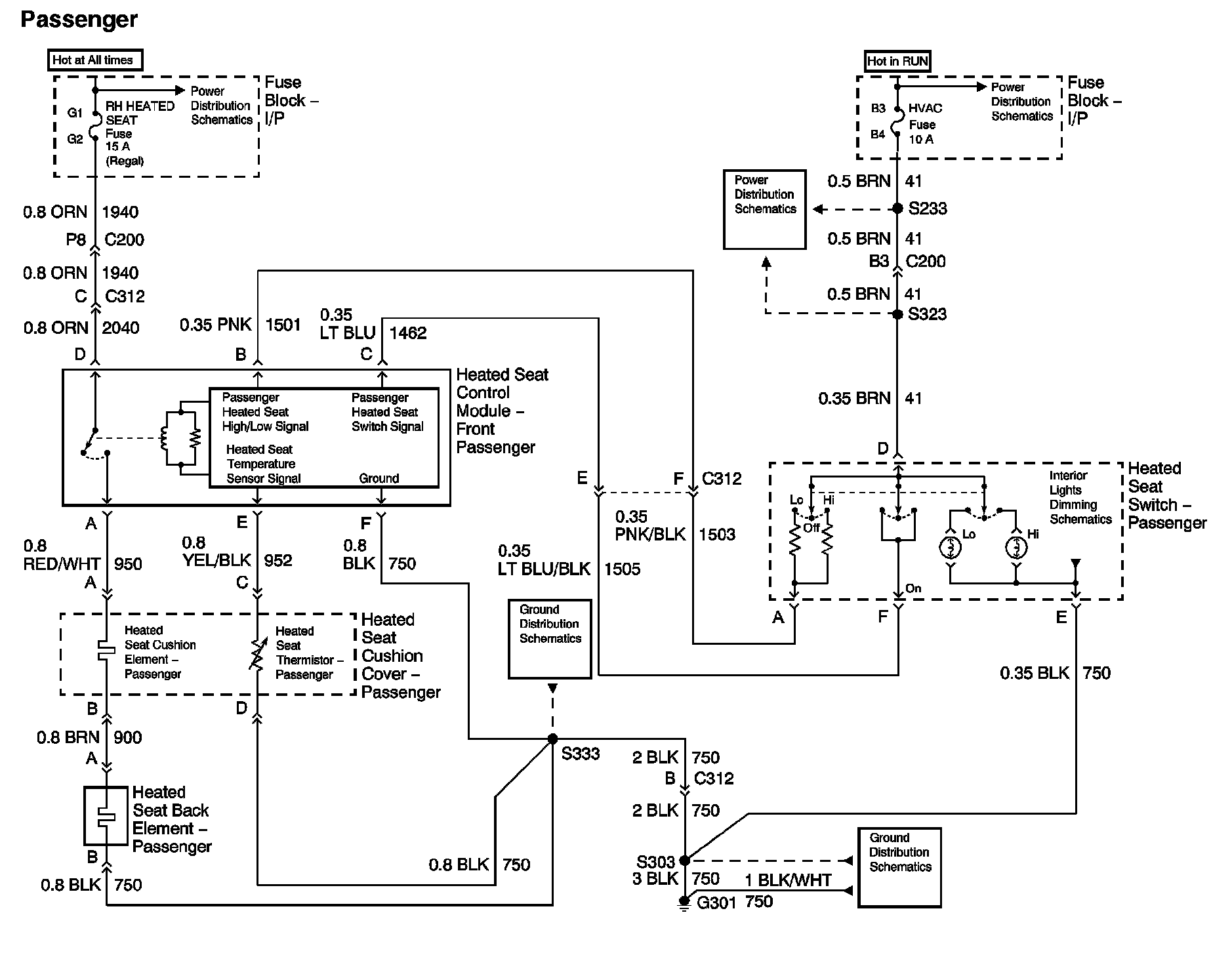

Heated Seats Diagram 2:
