12 Volt

ACCESSORY POWER RECEPTACLE REPLACEMENT - 12 VOLT

REMOVAL PROCEDURE




1. Remove the center console storage bin.

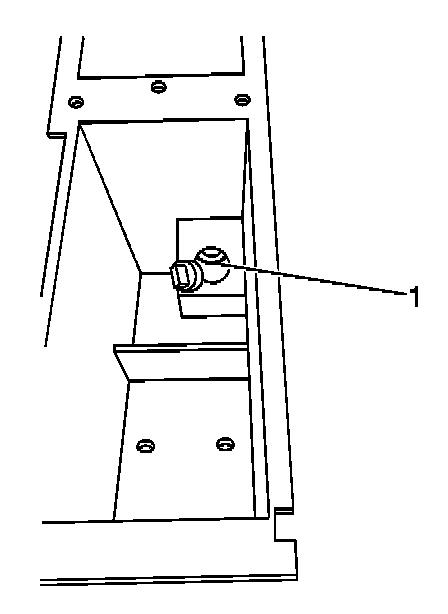

2. Remove the fastener (1) retaining the power accessory outlet to the storage bin.
3. Remove the power accessory outlet.

INSTALLATION PROCEDURE

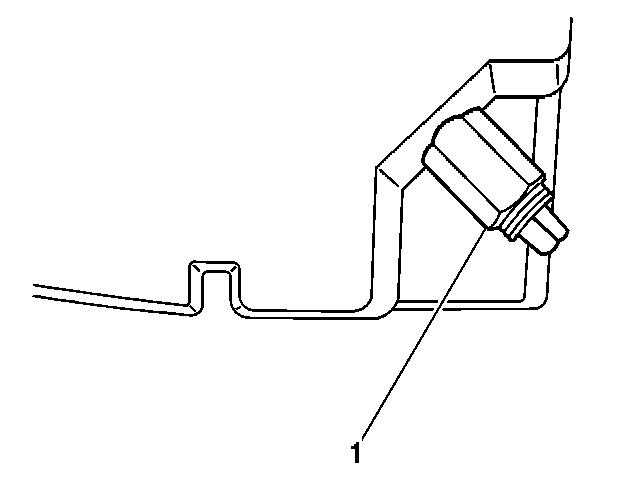

1. Install the power accessory outlet (1) to the storage bin.
2. Install the fastener.
3. Install the center console storage bin.
