Frame Contact Hoist

FRAME CONTACT HOIST

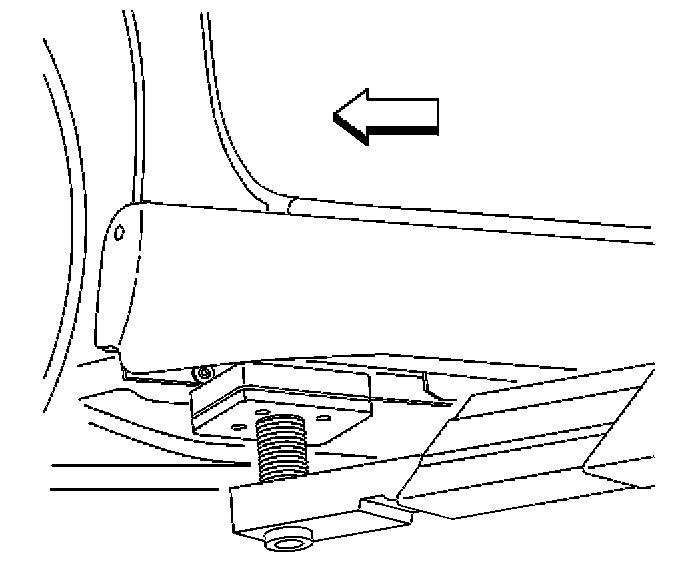

FRONT HOIST PADS

IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

Frame Contact Hoist:

Position the frame contact front hoist pads as follows:
- Under the front frame rail reinforcements
- The long sides of the pads parallel to the frame rails

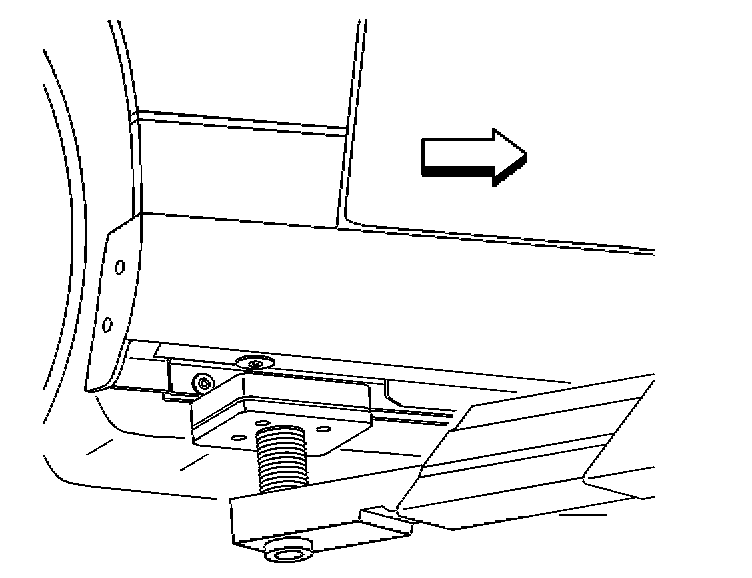

REAR HOIST PADS

IMPORTANT: The rear hoist pads must not contact the rocker panels outside of the frame rail reinforcements.
- The rear hoist pads must not contact the floor pan.




Position the frame contact rear hoist pads as follows:
- Under the rear frame rail reinforcements
- The long sides of the pads perpendicular to the frame rails
- The outer edge of the pads aligned with the outer edge of the rear frame rail reinforcements
