Mode Door Replacement
MODE DOOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the HVAC Module.
2. Remove the mode actuator.
3. Remove the left temperature actuator.
4. Remove the fasteners that retain the mode actuator bracket.
5. Remove the mode actuator bracket.
6. Remove the upper module case screws in order to access the door.

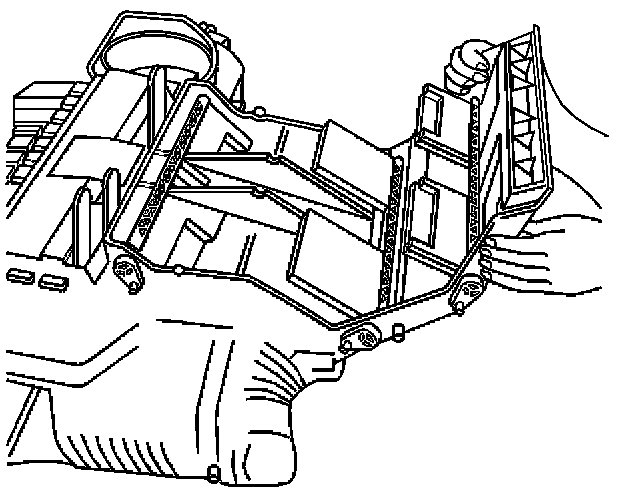

7. Open the module.

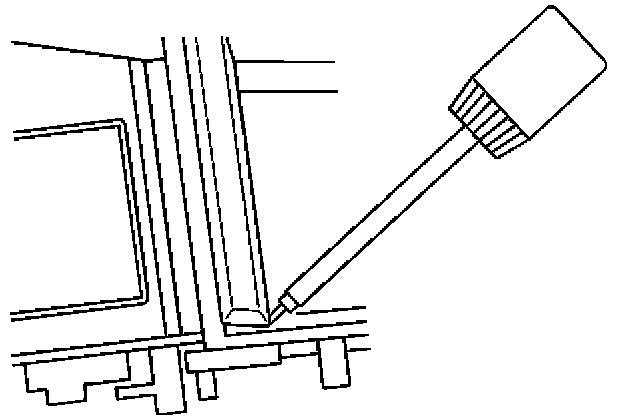

8. Remove the actuator cam from the door.

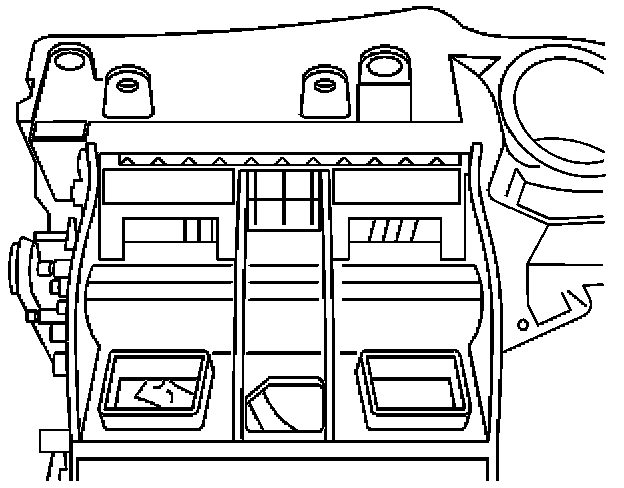

9. Remove the mode door.
INSTALLATION PROCEDURE

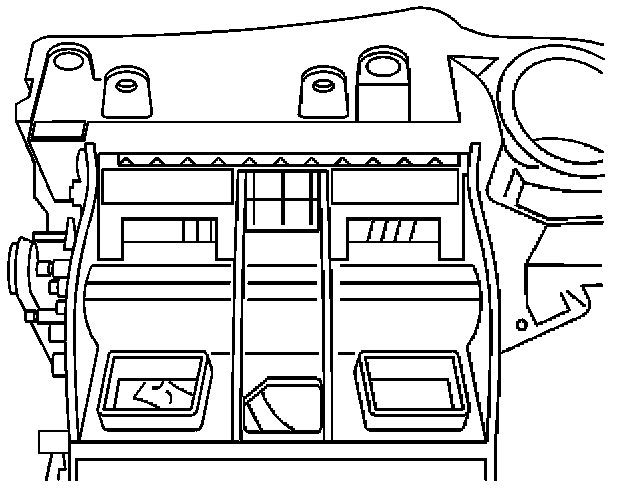

1. Install the mode door.
2. Install the actuator cam to the mode door.

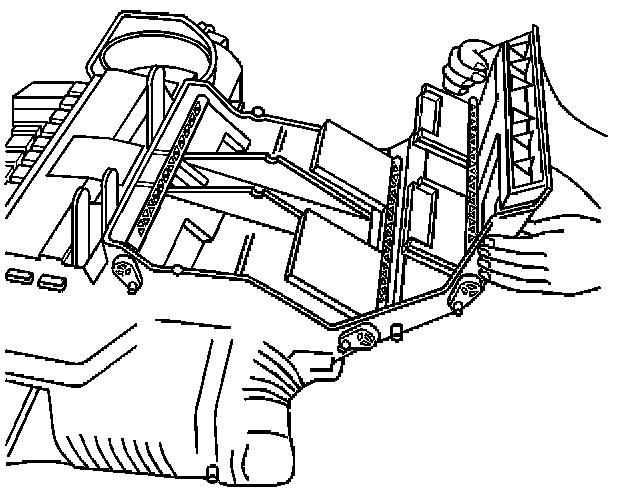

3. Close the module case.
4. Install the module case screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 1.4 N.m (12 lb in).
5. Install the mode actuator and bracket.
Tighten
Tighten the screws to 1.4 N.m (12 lb in).
6. Install the HVAC module.
