EVAP Hoses/Pipes Replacement - Engine

REMOVAL PROCEDURE

IMPORTANT: If the nylon EVAP pipe becomes kinked and cannot be straightened, the pipe must be replaced. DO NOT attempt to repair the EVAP pipes or the connecting hoses. Replace the damaged EVAP pipes or the connecting hoses that are damaged.

1. Remove the fuel injector sight shield.

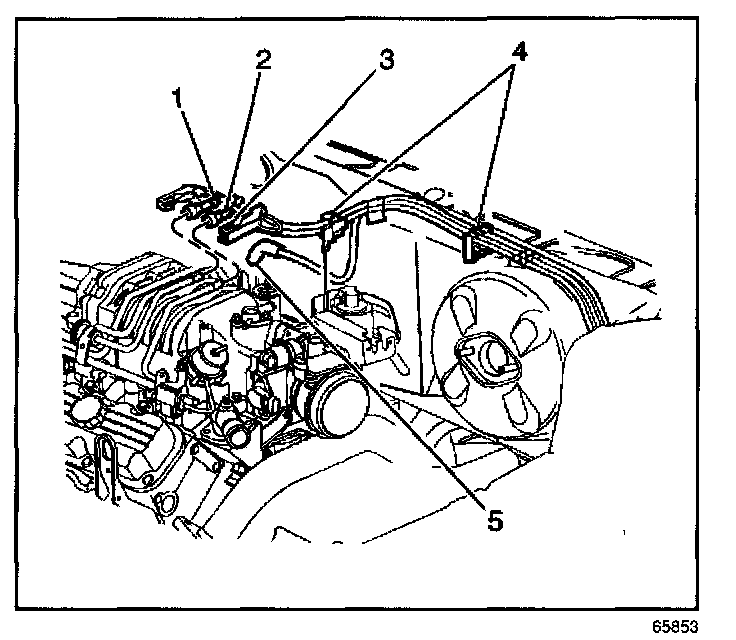

2. Remove the hardware retaining the EVAP pipe/hose (4).
3. Inspect the location of the attaching hardware for installation.
4. Remove the EVAP pipe/hose (5).
5. Inspect the pipe/hose for bends, kinks, and cracks.
6. Replace the pipes/hose as required.

INSTALLATION PROCEDURE




1. Install the EVAP pipe/hose (5).

NOTE: Refer to Properly Secured Evaporative Emission (EVAP) Pipe Notice in Service Precautions.

2. Install the hardware retaining the EVAP pipe/hose (4).
3. Install the fuel injector sight shield.
