Antilock Brakes / Traction Control Systems
>>
Indicators And Stop Lamp Switch
Indicators And Stop Lamp Switch

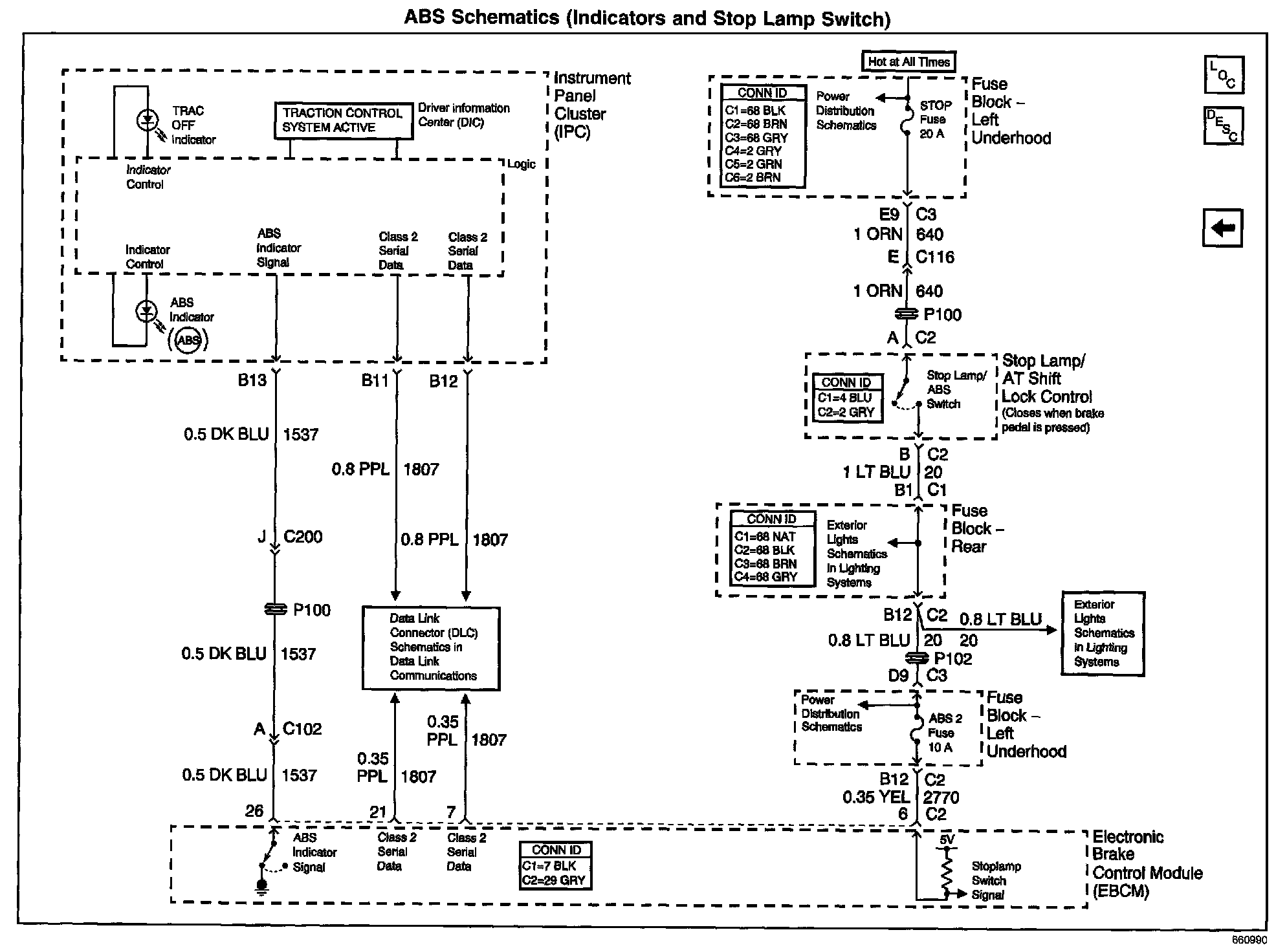

ABS Schematics: Indicators And Stop Lamp Switch:
