Tie Rod Boot: Service and Repair

Rack and Pinion Boot Replacement - On Vehicle

Tools Required
^ J24319-B Universal Steering Linkage Puller
^ J22610 Keystone Clamp Plier

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel.
3. Remove the outer tie rod.

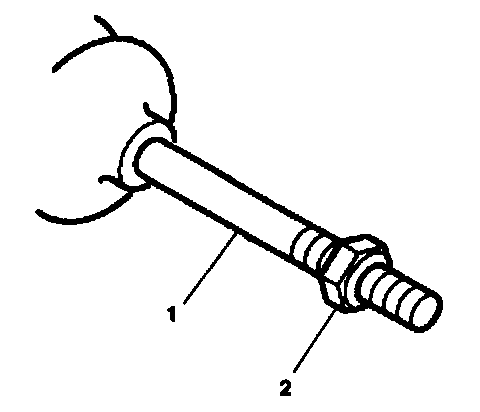

4. Remove the hex jam nut (2) from the inner tie rod.

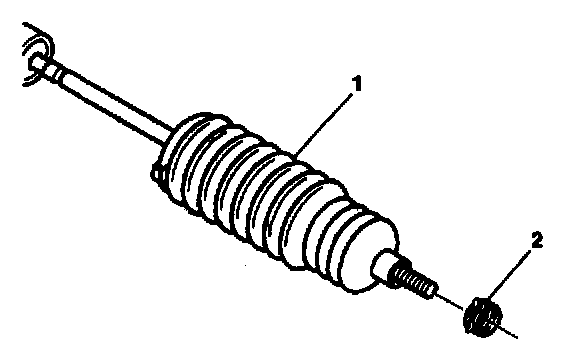

5. Remove the tie rod end clamp (2) from the rack and pinion boot (1).
6. Remove the rack and pinion boot clamp from the rack and pinion boot.

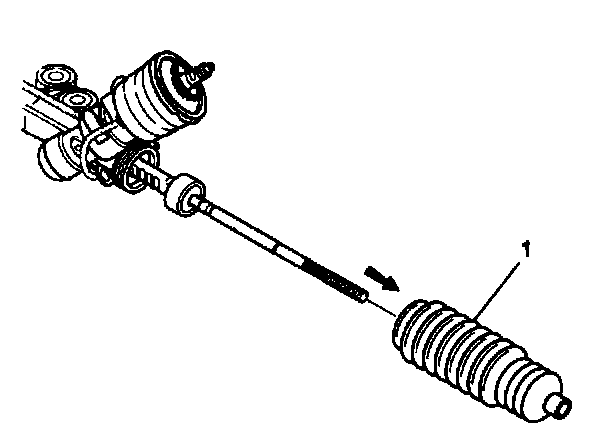

7. Remove the rack and pinion boot (1) from the steering gear.

Installation Procedure

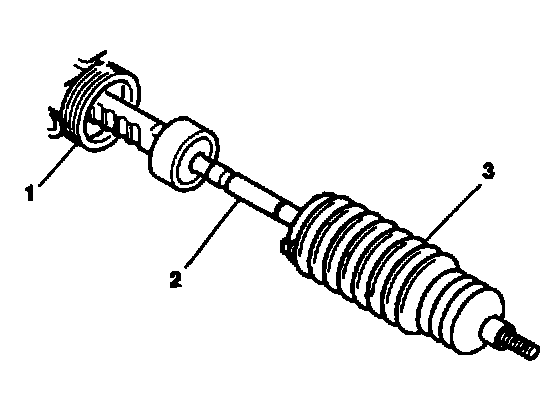

1. Install the rack and pinion boot (3) to the steering gear.
2. Install a new rack and pinion boot clamp.





3. Using J22670 Crimp the rack and pinion boot clamp.

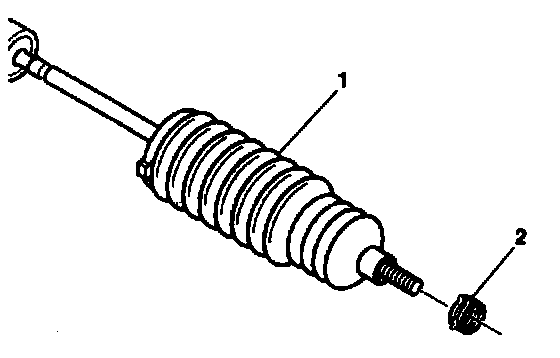

4. Install the tie rod end clamp (2) to the rack and pinion boot (1).

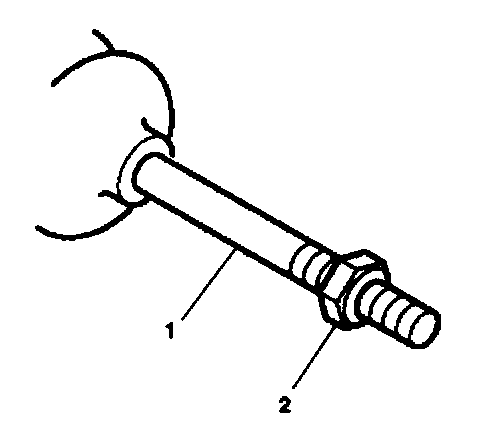

5. Install the hex jam nut (2) to the inner be rod assembly.
6. Install the outer tie rod.
7. Install the tire and wheel.
8. Lower the Vehicle.
9. Adjust the toe alignment.
