Seat Belt Replacement - Front

REMOVAL PROCEDURE

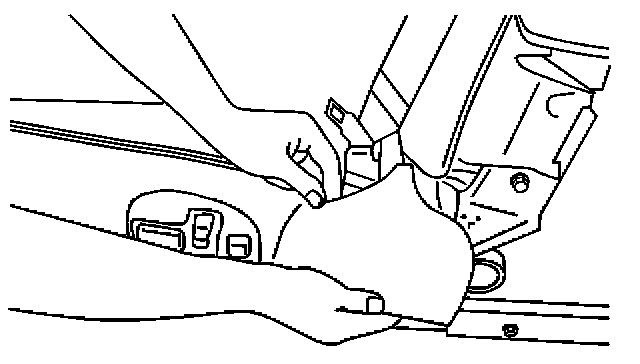

1. Remove the seat belt tower rear trim cover.

CAUTION: Refer to SIR Caution in Service Precautions.

NOTE: Refer to Servicing and Replacing Seat Belts Notice in Service Precautions.

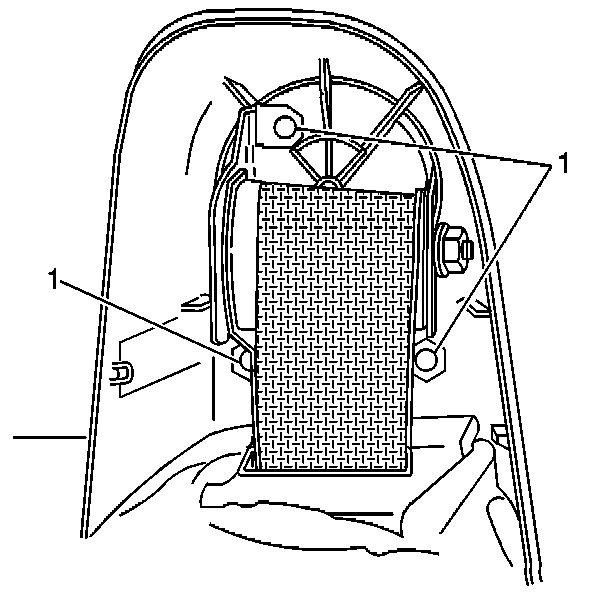

2. Remove the tower front trim cover fasteners (1).

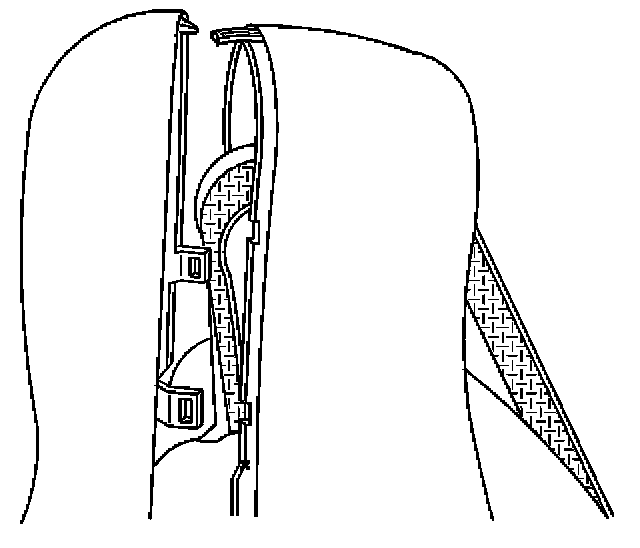

3. Partially remove the seat back cover, in order to expose the shoulder retractor fastener. Refer to Seat Back Cover and Pad Replacement - Front in Seats.
4. Remove the shoulder retractor fastener.




5. Pull the seat cushion aside in order to gain access to the lap retractor. Remove the lap retractor screws and the cover.
6. Remove the lap retractor fastener and pull out the lap retractor.
7. Remove the lap retractor by pulling out the retractor.

INSTALLATION PROCEDURE




1. Install the lap retractor over the stud. Align the tab on the retractor with the notch in the seat frame.
2. Install the lap retractor fastener.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fastener to 35 N.m (26 lb ft).

3. Install the lap belt retractor cover.




4. Install the shoulder belt retractor.
5. Install the shoulder belt retractor fastener.

Tighten
Tighten the fasteners to 35 N.m (26 lb ft).

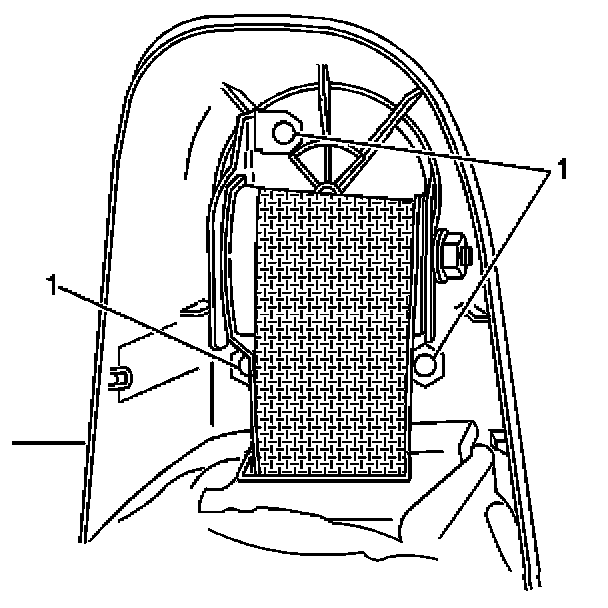

6. Install the tower front trim cover fasteners (1).

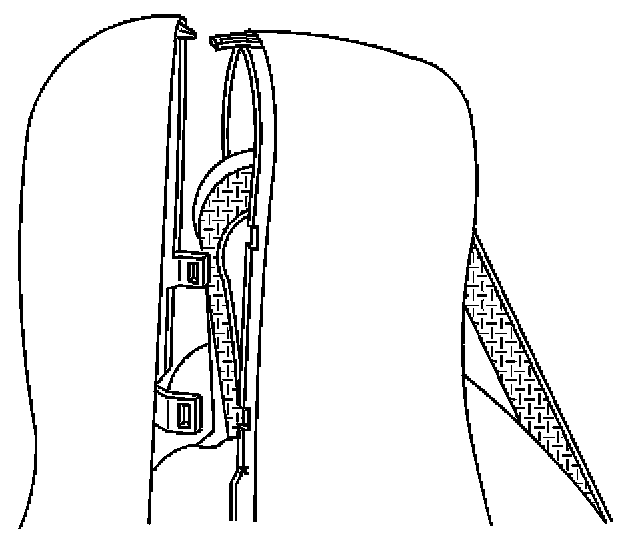

7. Install the seat back cover.

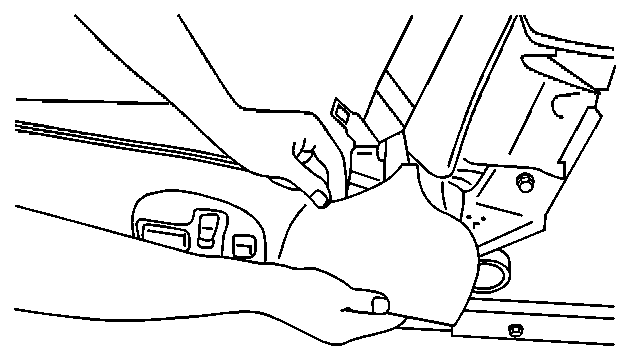

8. Install the seat belt tower rear cover.
