Positive Crankcase Ventilation Valve: Service and Repair

Positive Crankcase Ventilation (PCV) Valve Replacement

Removal Procedure





1. Remove the fuel injector sight shield.

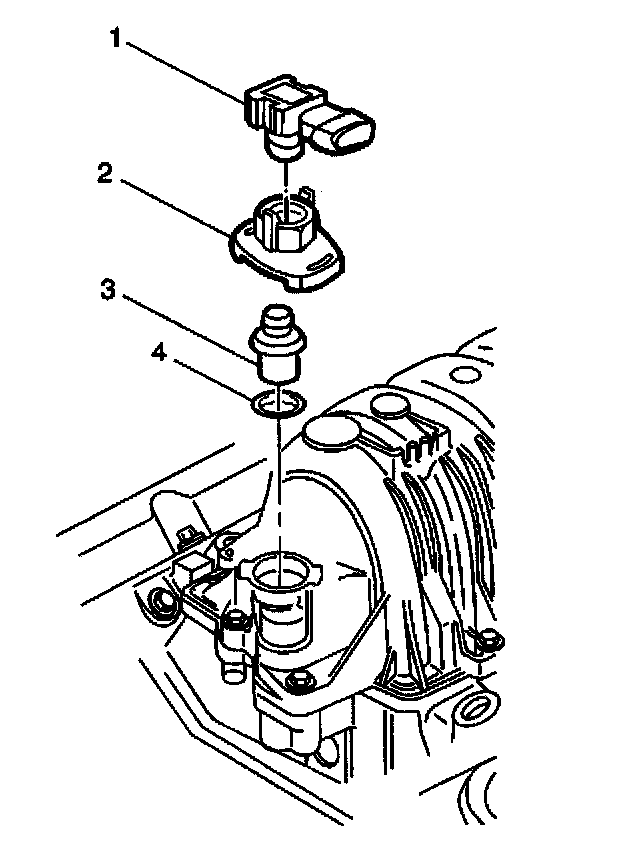

2. Remove the MAP sensor (1).
3. Use a 16 mm (5/8 inch) socket to press the access cover (2) down and rotate 1/4 turn counterclockwise.
4. Remove the access cover.
5. Remove the PCV valve (3) and the O-ring (4) from the intake manifold.

Installation Procedure





1. Install the PCV valve (3) and the O-ring (4) into the intake manifold.
2. Install the access cover (2).
3. Install the MAP sensor (1).
4. Install the fuel injector sight shield.
