Home >> Buick >> 2003 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

Throttle Position Sensor: Diagrams

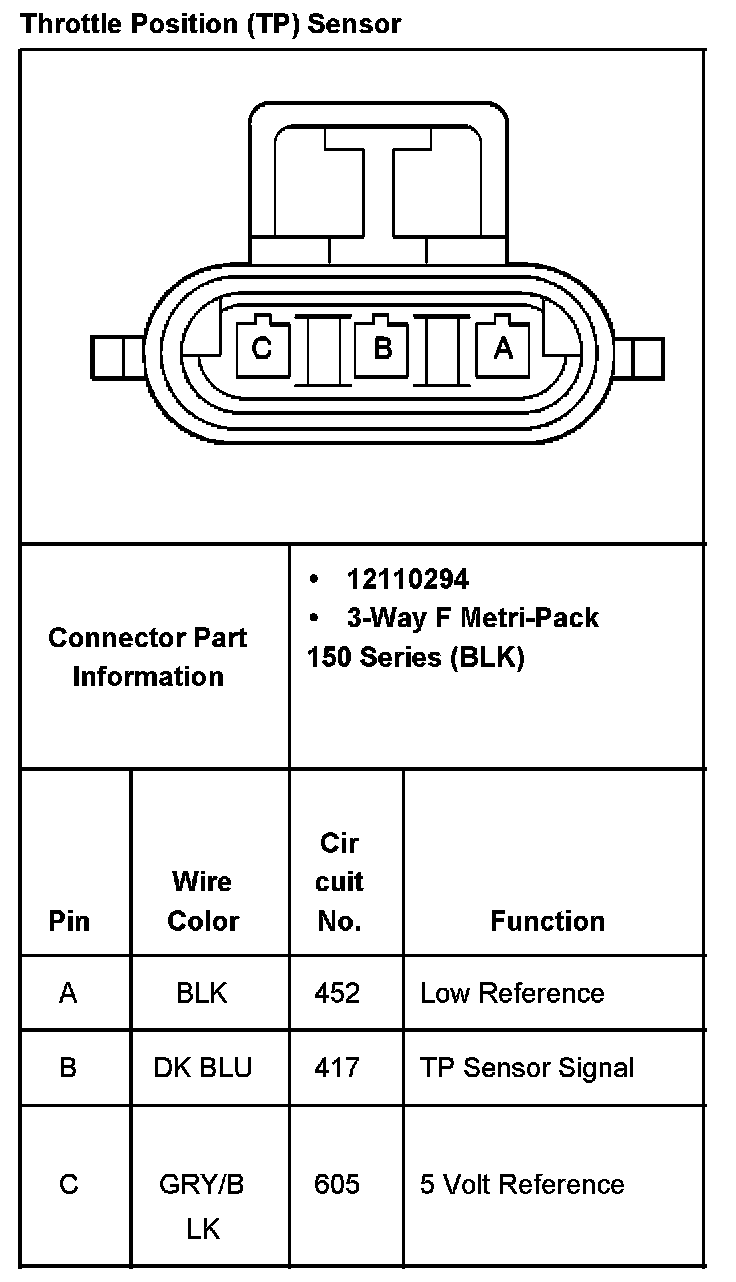

Throttle Position (TP) Sensor:
