Hazard Warning Flasher: Service and Repair

HAZARD LAMP FLASHER REPLACEMENT

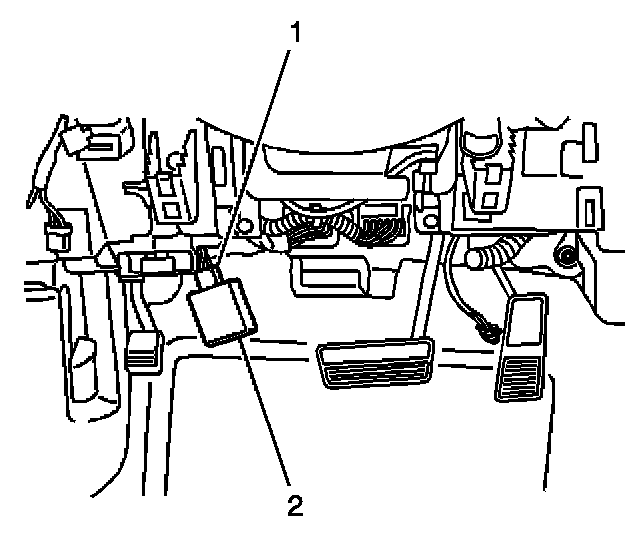

REMOVAL PROCEDURE




1. Remove the left IP closeout/insulator panel.
2. Remove the turn signal/hazard warning flasher (2) from the IP carrier.
3. Disconnect the electrical connector (1) from the turn signal/hazard warning flasher (2).

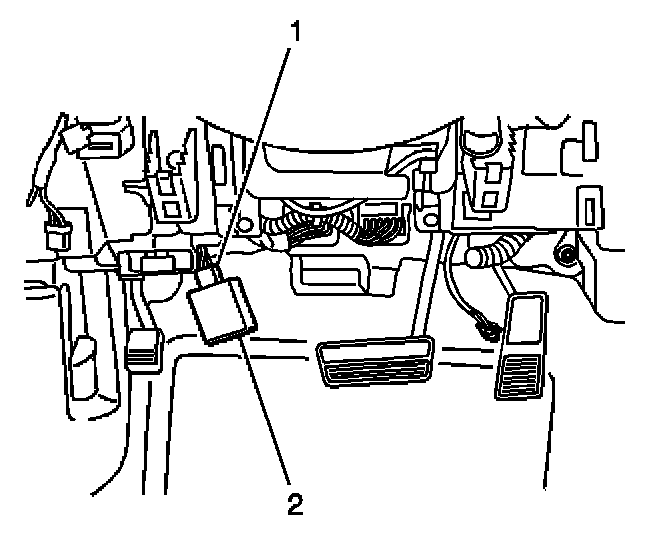

INSTALLATION PROCEDURE




1. Connect the electrical connector (1) the turn signal/hazard warning flasher (2).
2. Install the turn signal/hazard warning flasher (2) to the IP carrier.
3. Install the left IP closeout/insulator panel.
