Glove Box Lamp: Service and Repair

INSTRUMENT PANEL (I/P) COMPARTMENT LAMP BULB REPLACEMENT

REMOVAL PROCEDURE




1. Remove the IP compartment storage bin.

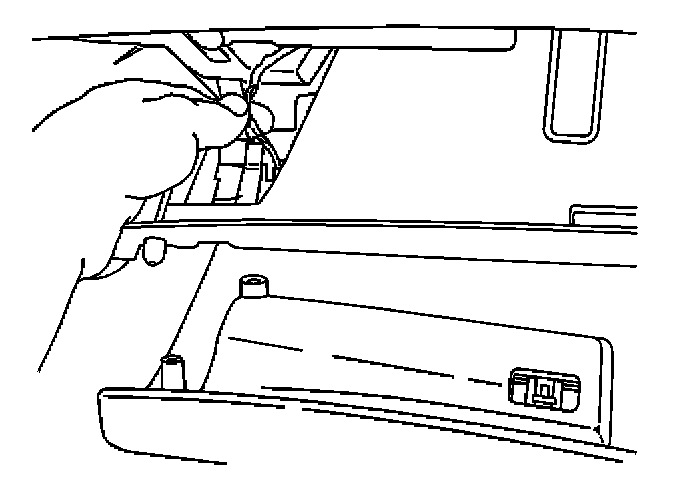

2. Disconnect the electrical connectors.

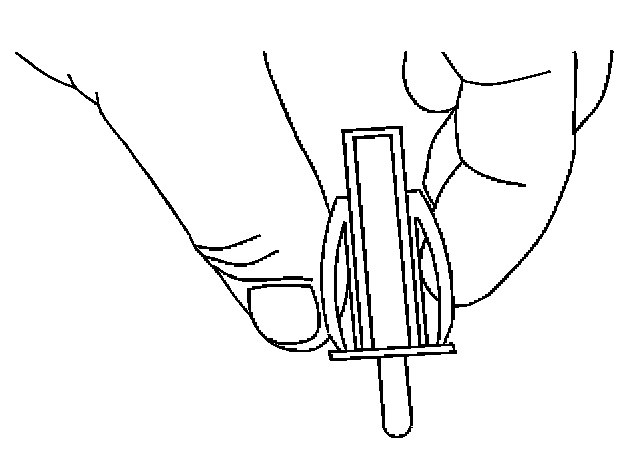

3. Depress the IP compartment lamp and switch assembly locking tabs in order to remove the lamp assembly from the IP storage compartment.
4. Remove the bulb from the lamp housing.

INSTALLATION PROCEDURE




1. Install the bulb into the lamp housing.
2. Snap the lamp housing and switch assembly into the IP storage compartment.
3. Connect the electrical connector.
4. Install the IP storage compartment.
