Antilock Brakes / Traction Control Systems
>>
Vehicle Stability Enhancement System (W/JL4)
Vehicle Stability Enhancement System (W/JL4)

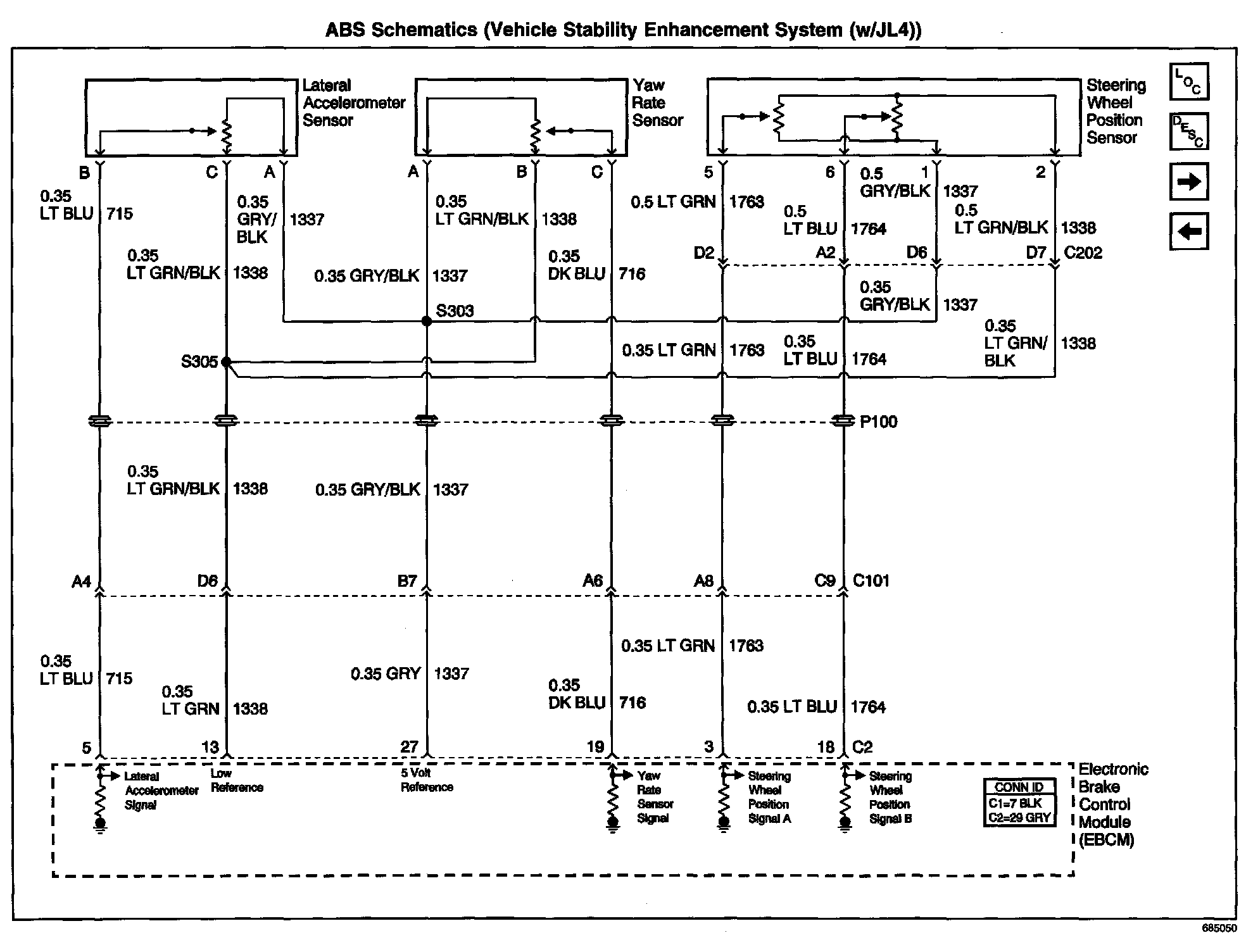

ABS Schematics (Vehicle Stability Enhancement System (w/JL4)):
