Buick
>>
2003
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Indicators and Traction Control Switch
Indicators and Traction Control Switch

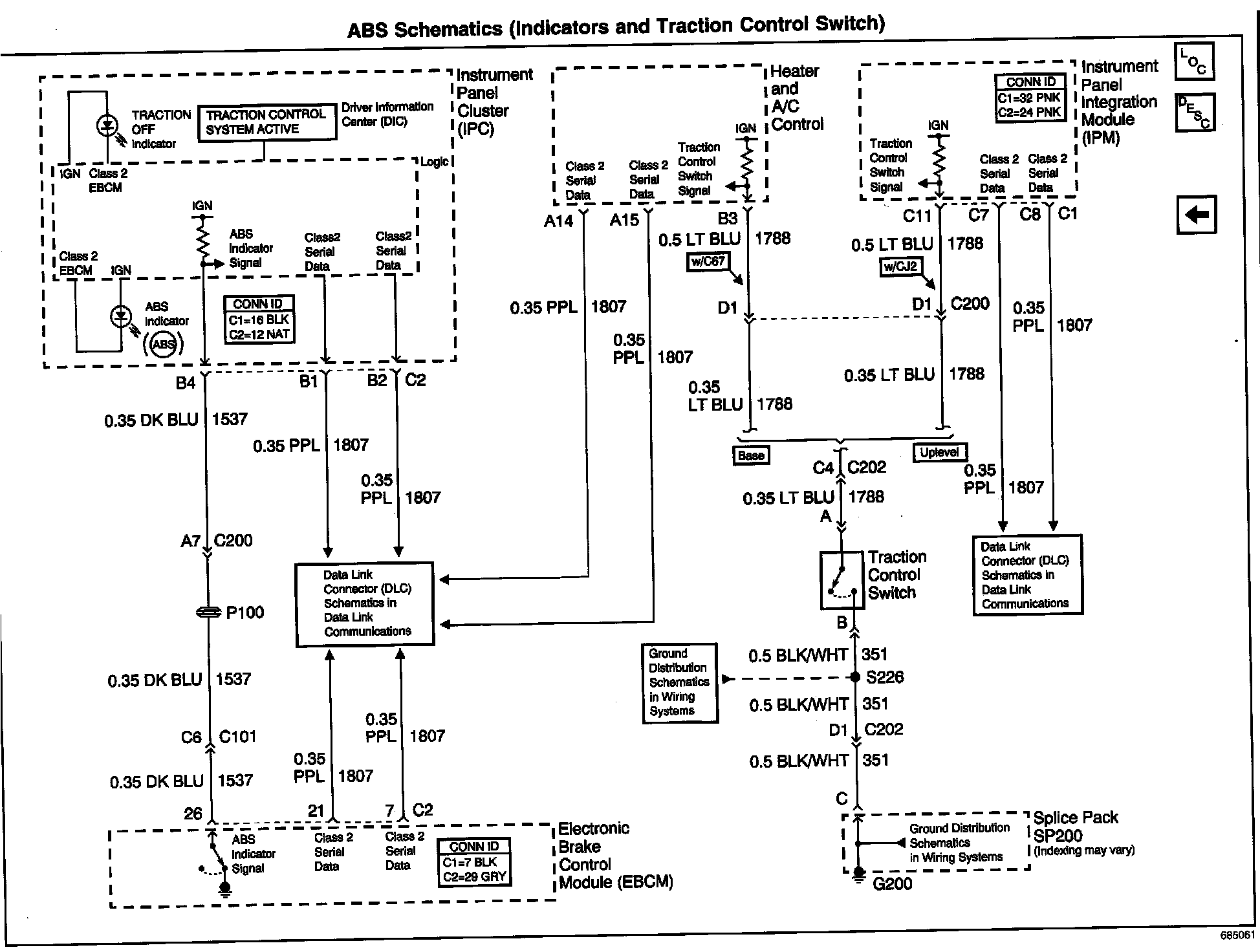

ABS Schematics (Indicators And Traction Control Switch):
