C314 L/F Power Seat Harness Inline to Lumbar Switch W/Memory
C314 L/F Power Seat Harness Inline to Lumbar Switch W/Memory

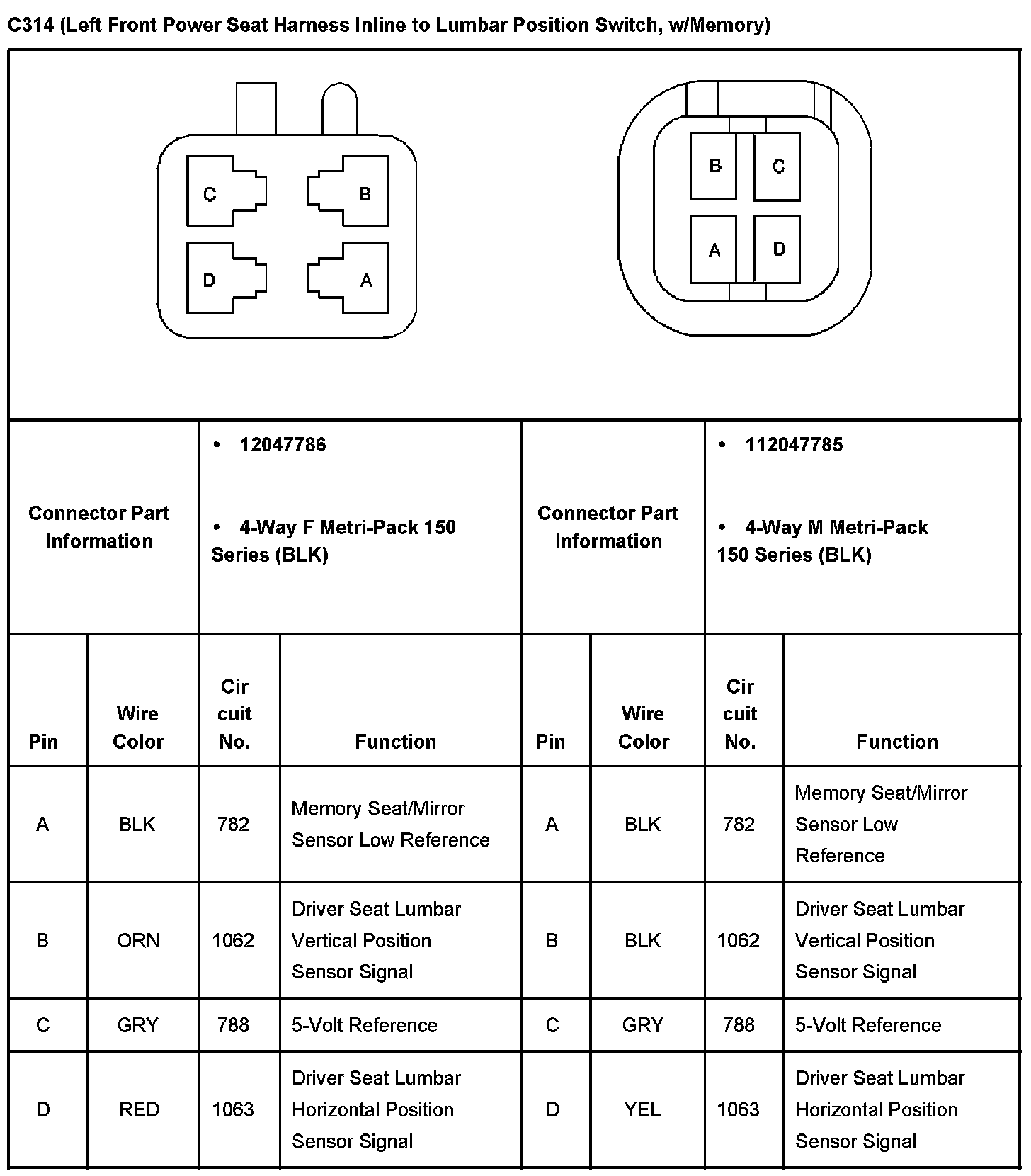

C314 (Left Front Power Seat Harness Inline To Lumbar Position Switch, W/Memory):
