C103 (Engine Harness Inline to Ignition Control Harness)
C103 (Engine Harness Inline to Ignition Control Harness)

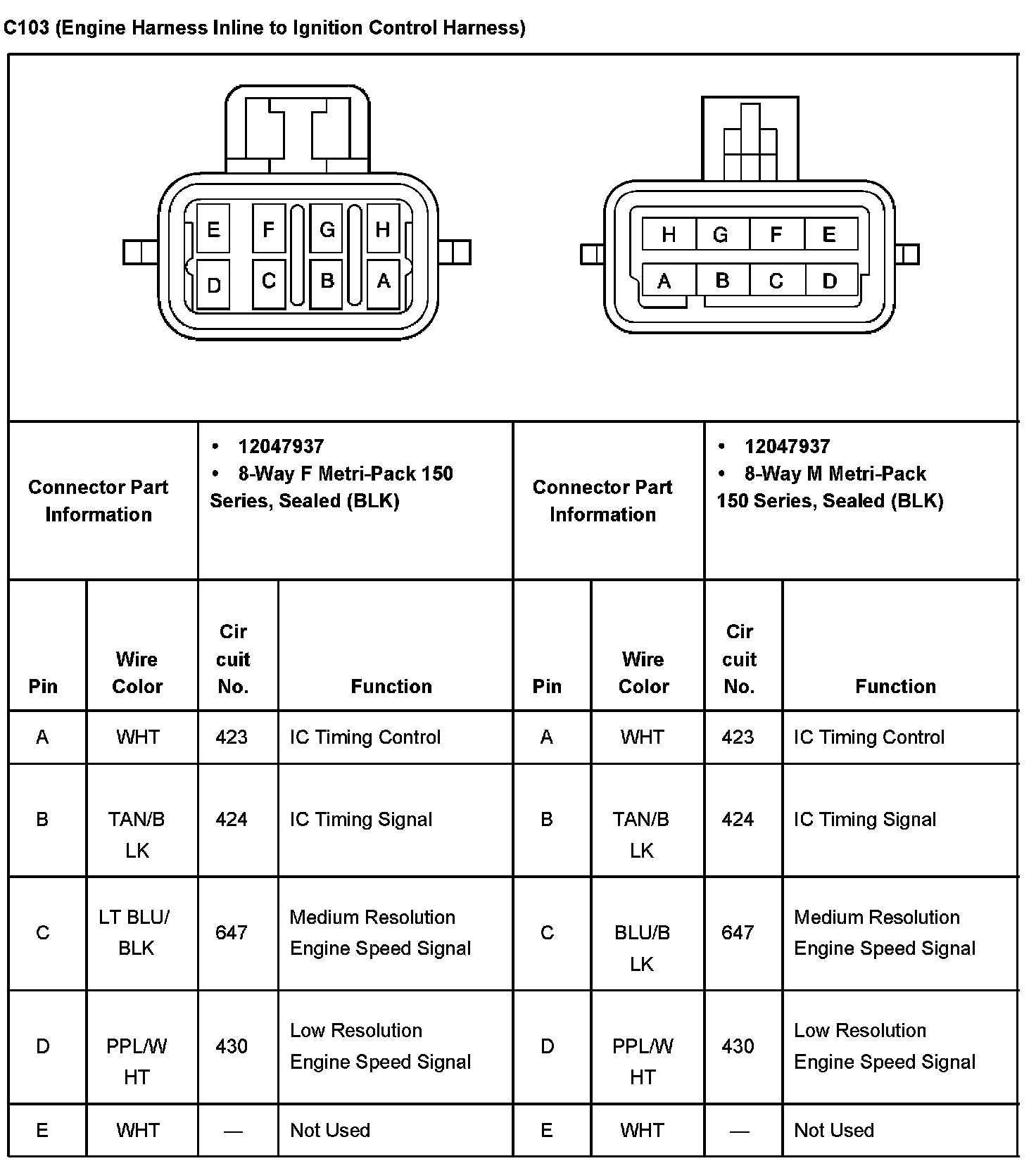

C103 (Engine Harness Inline To Ignition Control Harness) Part 1:

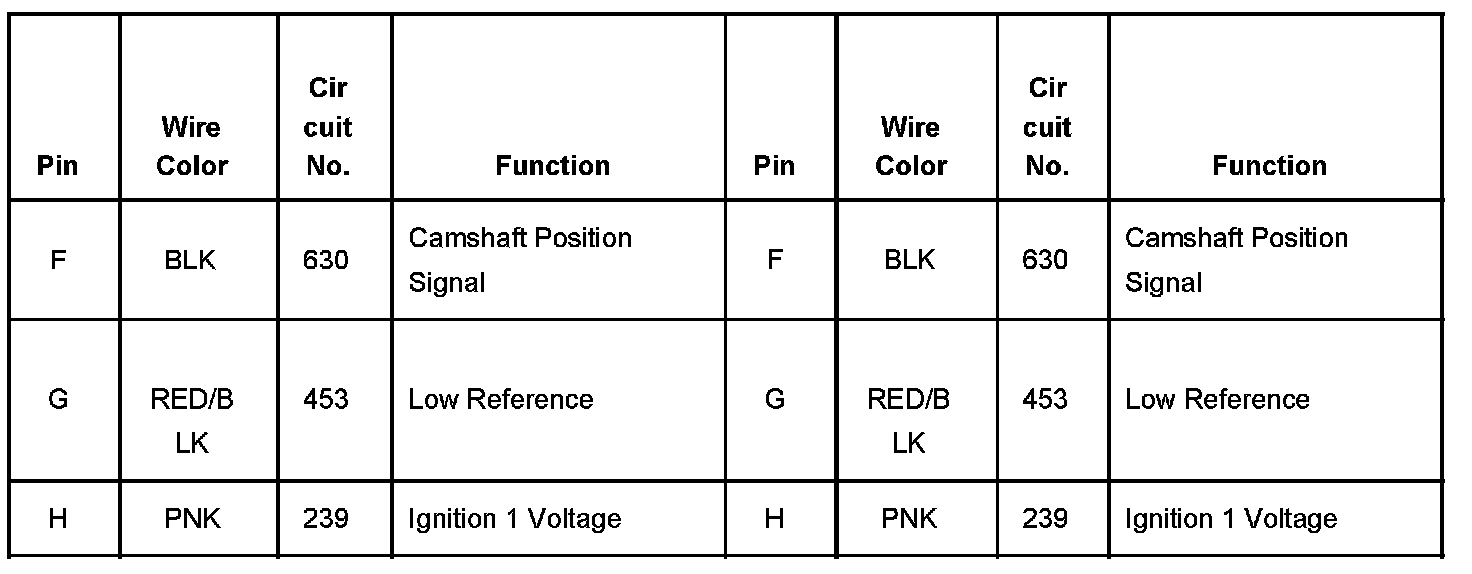

C103 (Engine Harness Inline To Ignition Control Harness) Part 2:
