Buick
>>
2003
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>
Footwell Courtesy Lamp
Footwell Courtesy Lamp

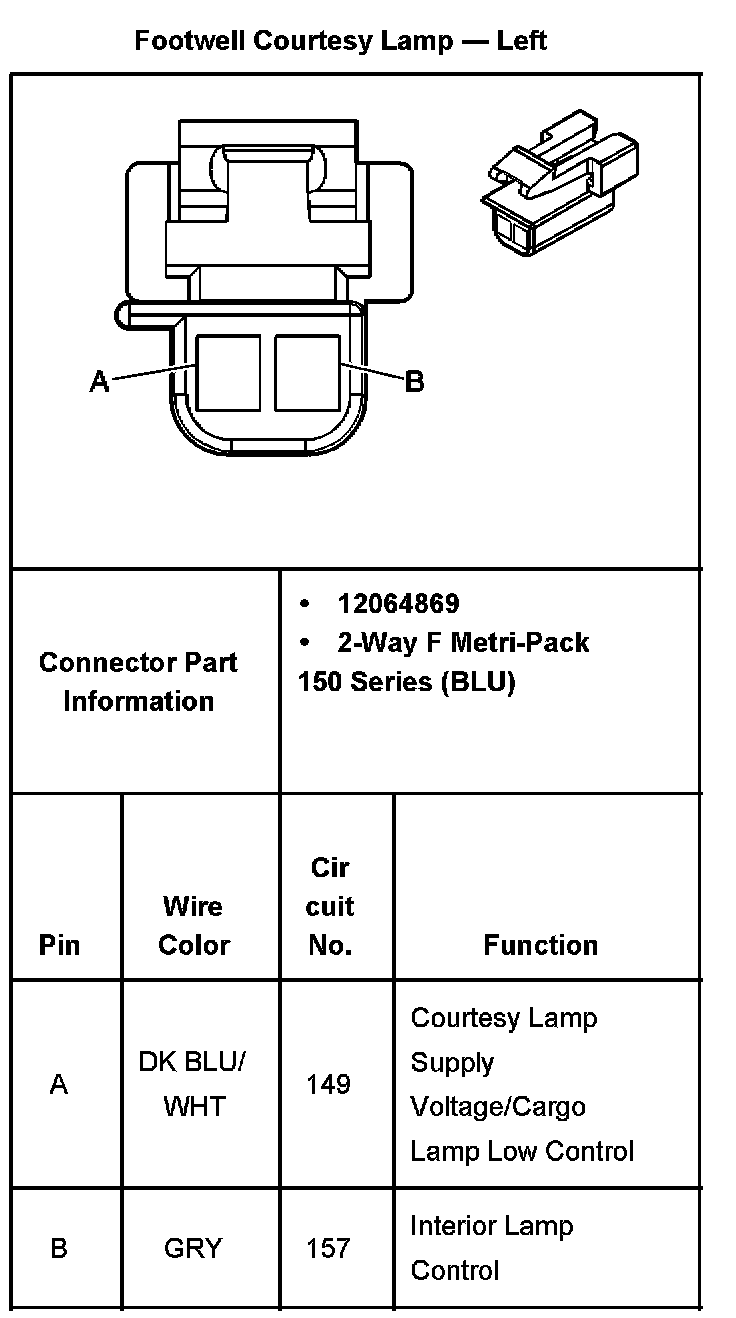

Footwell Courtesy Lamp - Left:
Footwell Courtesy Lamp - Right:
