Air Door Actuator / Motor, HVAC
>>
HVAC System - Manual
HVAC System - Manual

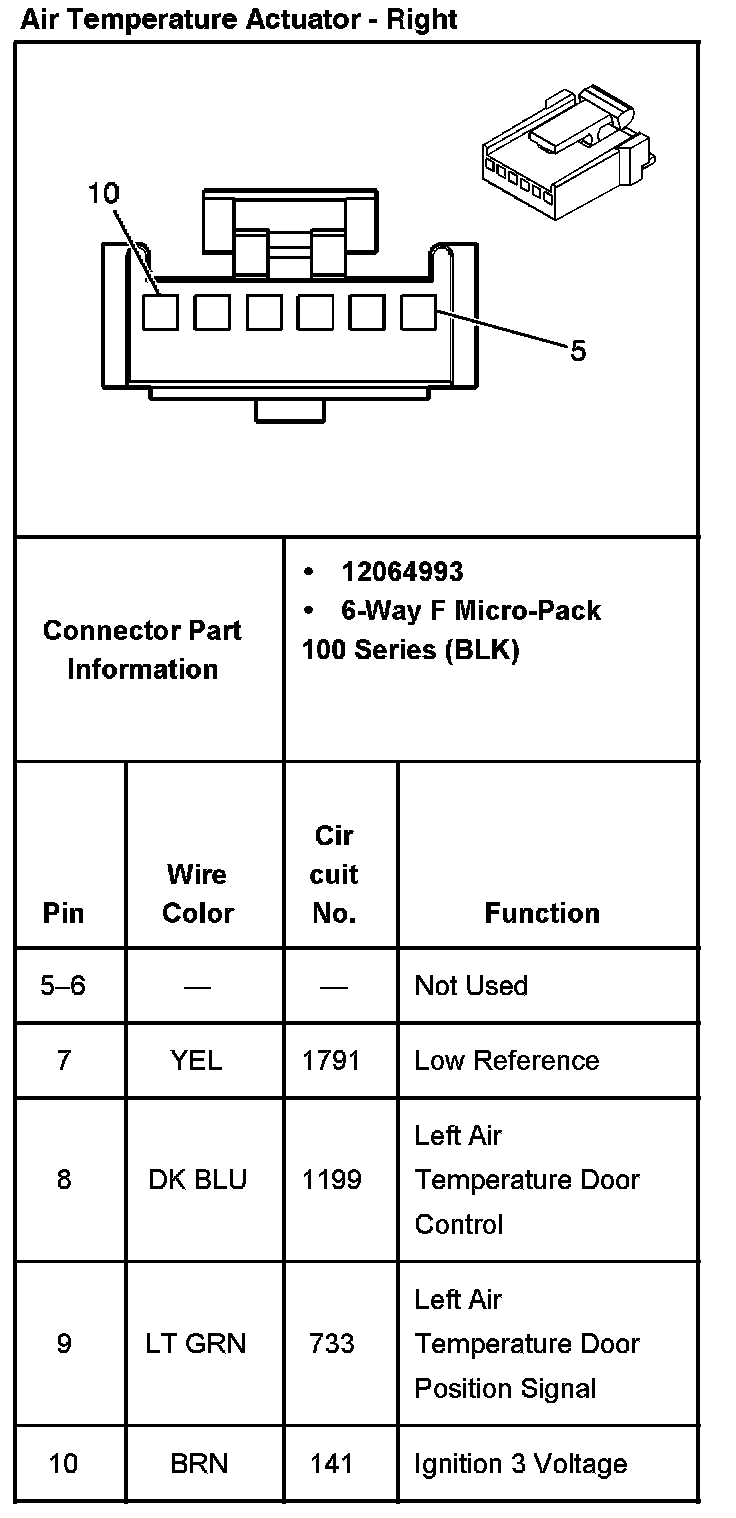

Air Temperature Actuator - Right:

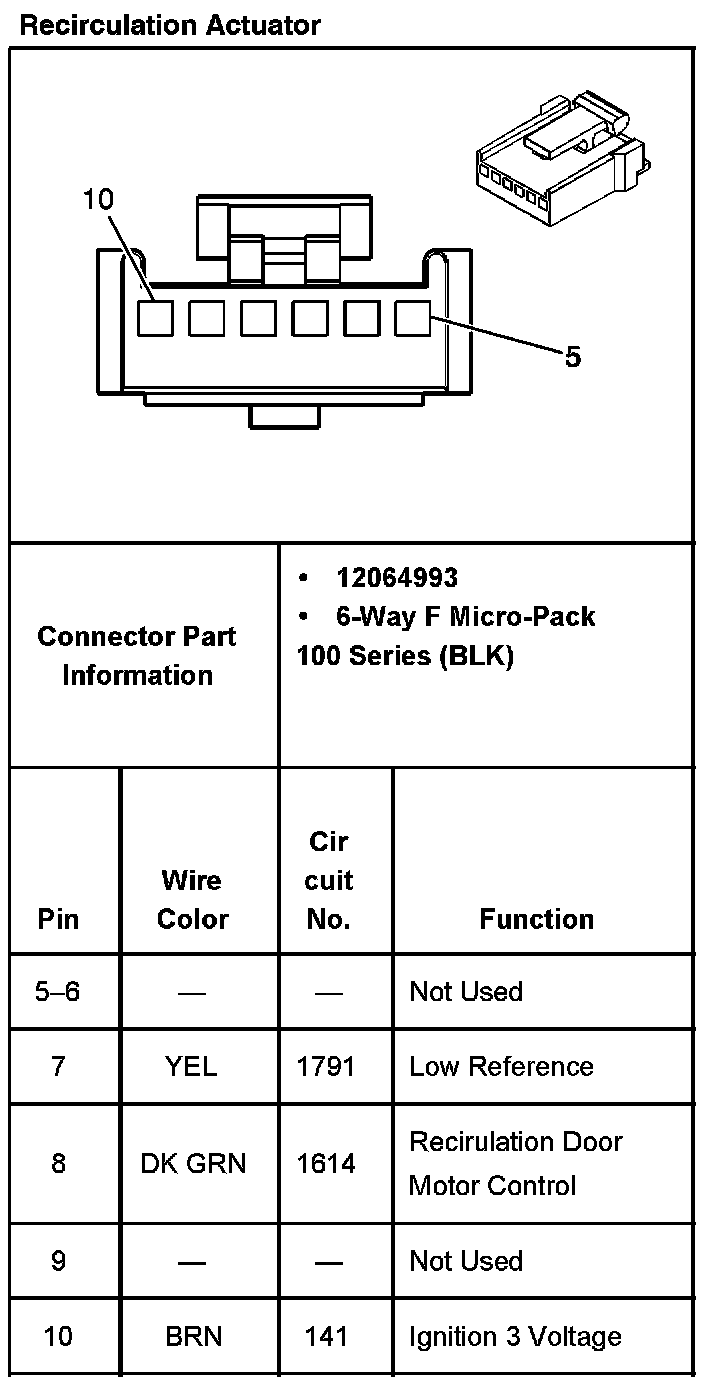

Recirculation Actuator:
Air Temperature Actuator:
Mode Actuator:
