Air Door Actuator / Motor, HVAC
>>
HVAC System - Automatic
HVAC System - Automatic

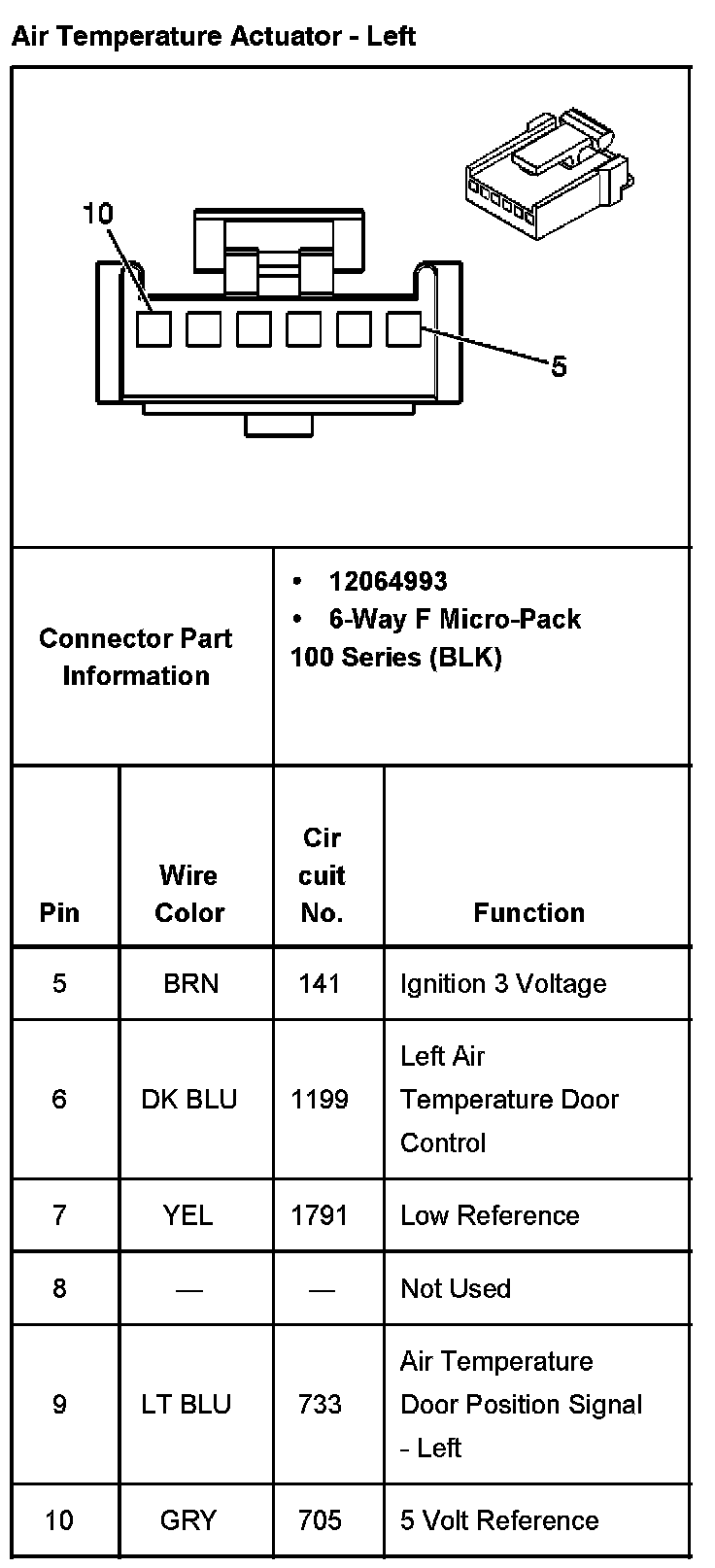

Air Temperature Actuator - Left:

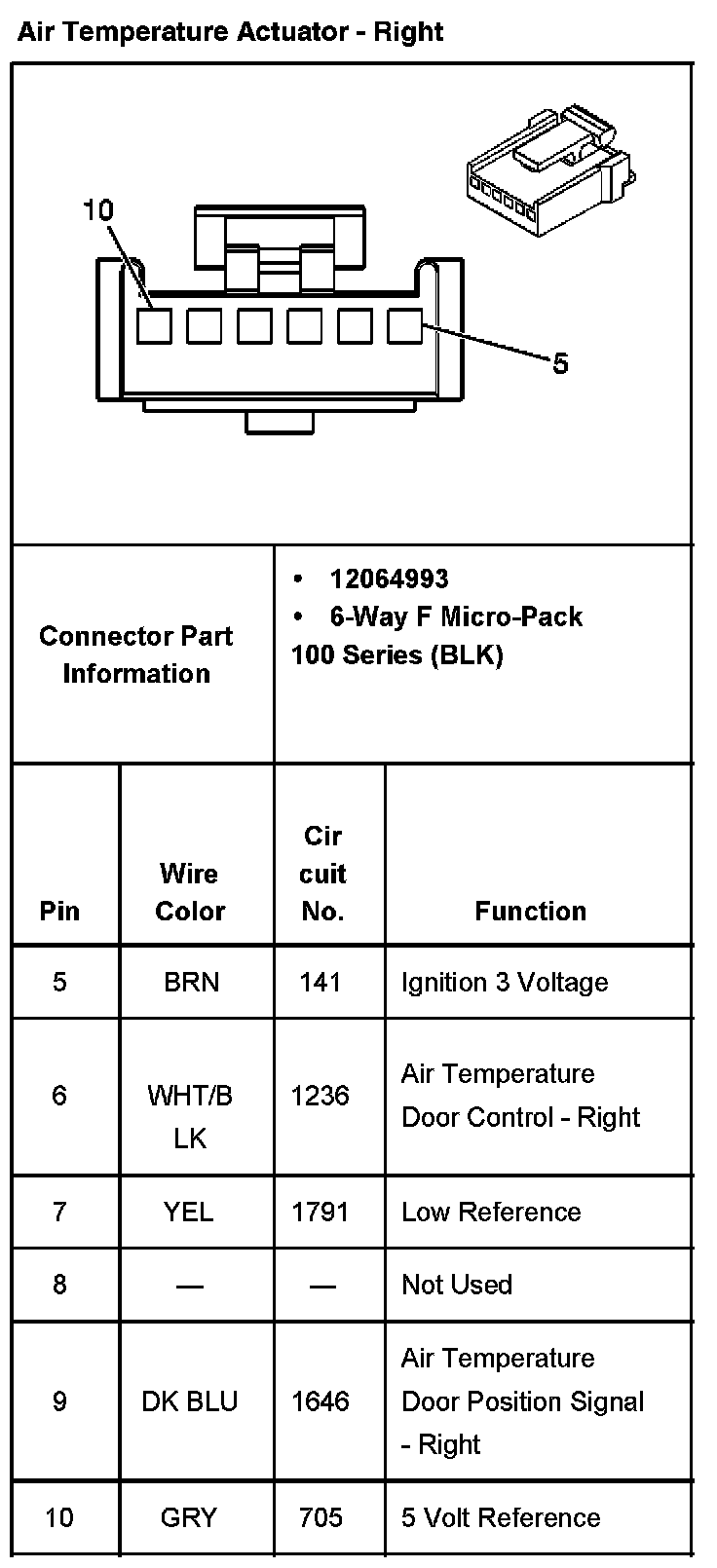

Air Temperature Actuator - Right:

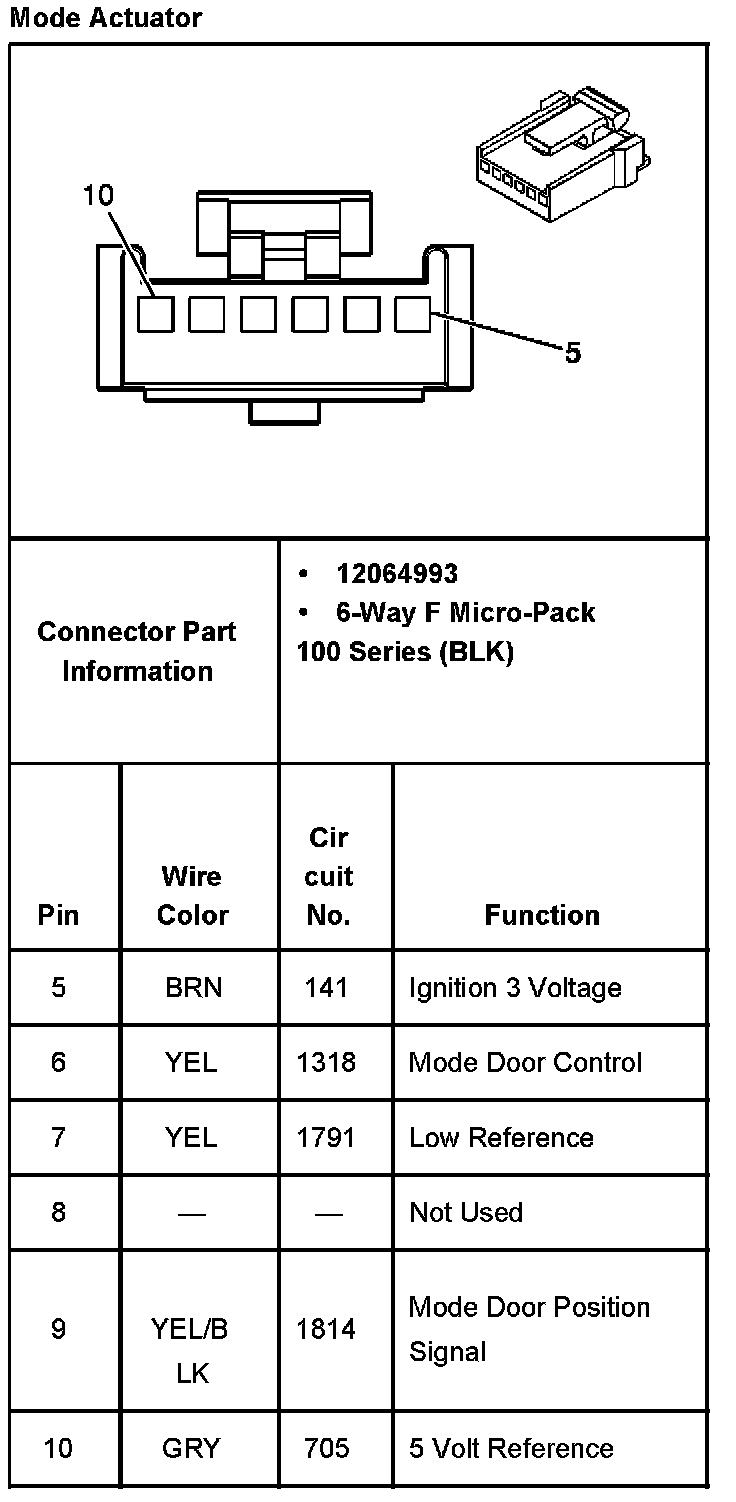

Mode Actuator:
