Brake Pressure Modulator Valve (BPMV) Bracket Replacement

Brake Pressure Modulator Valve (BPMV) Bracket Replacement

Removal Procedure
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
3. Remove the left front fascia extension. Refer to Fascia Extension Replacement - Front in Bumpers.

Important: The area around the electronic brake control module (EBCM)/brake pressure modulator valve (BPMV) must be free from loose dirt to prevent contamination of disassembled ABS components.

4. Thoroughly clean all contaminants from around the EBCM/BPMV.
5. Remove the 2 BPMV bracket nuts (2).

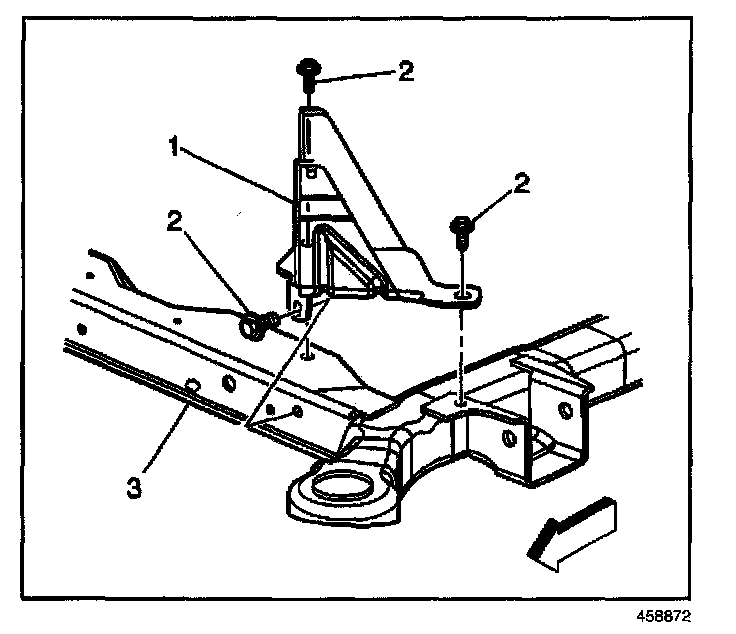

6. Remove the 3 BPMV bracket to frame bolts (2).
7. Remove the BPMV bracket (1) from the frame (3).

Installation Procedure
1. Install the BPMV bracket (1) to the frame (3).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the 3 BPMV bracket to frame bolts (2).
Tighten
Tighten the 3 bolts to 10 N.m (106 in).

Important: Make sure that all 3 rubber isolators are installed on the BPMV. The isolators protect the EBCM/BPMV assembly from vehicle vibrations.

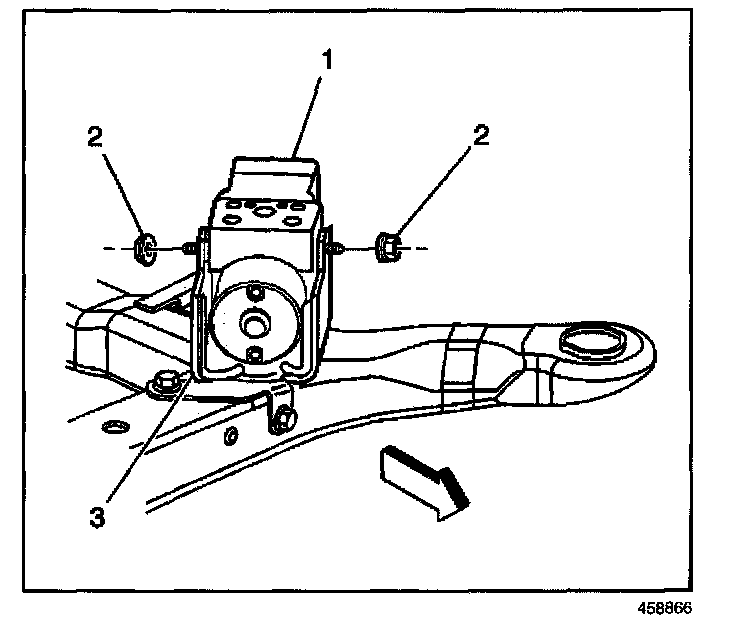

3. Install the EBCM/BPMV assembly (1) to the BPMV bracket (3).
4. Install the 2 BPMV bracket nuts (2).
Tighten
Tighten the 2 nuts to 10 N.m (89 lb in).
5. Install the left front fascia extension. Refer to Fascia Extension Replacement - Front in Bumpers.
6. Install the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
7. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
