Home >> Buick >> 2003 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Traction Control (W/NW9)

Traction Control (W/NW9)

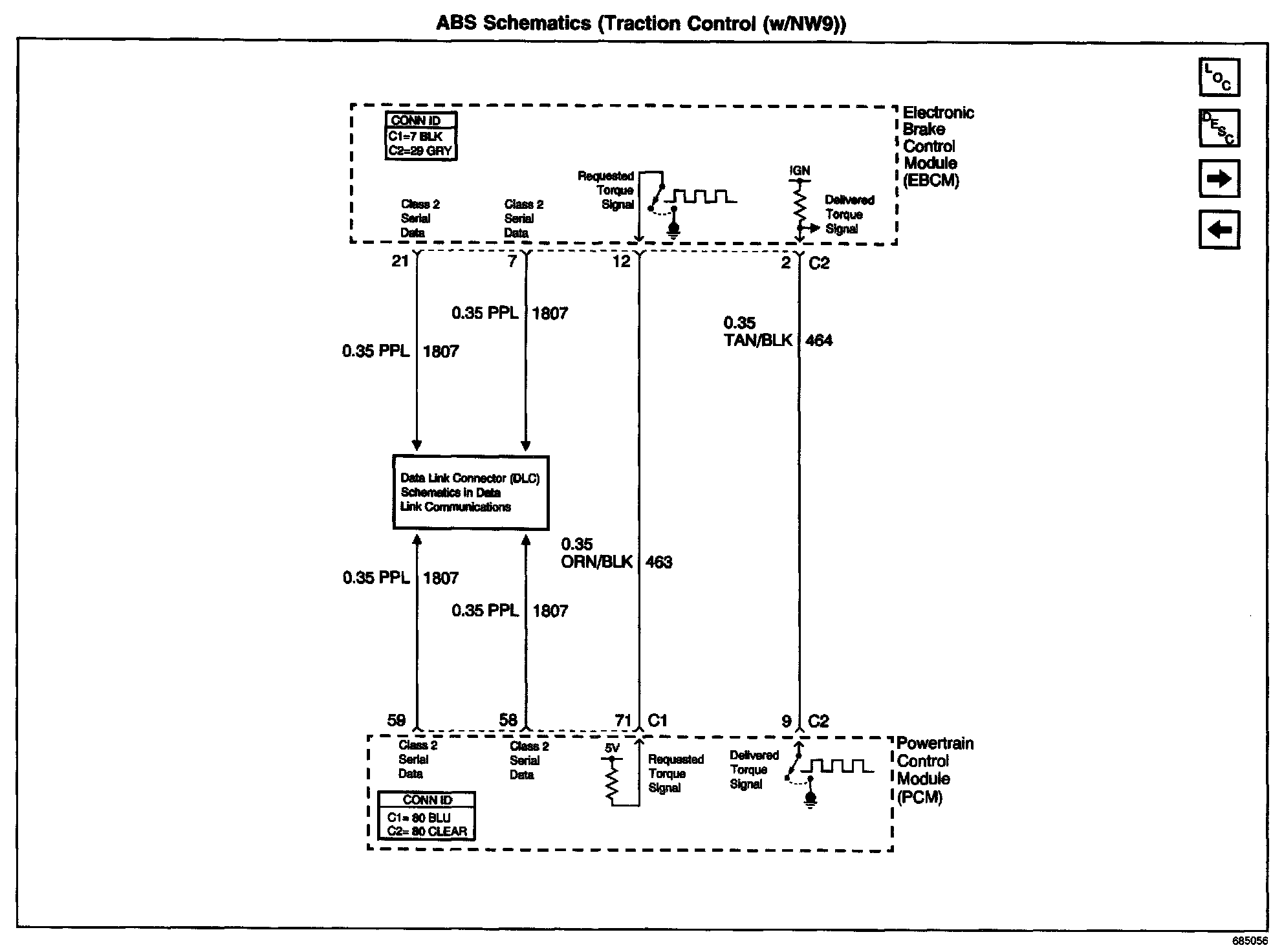

ABS Schematics (traction Control W/NW9)):
