Drink Holders: Service and Repair

Cupholder Replacement - Front Floor Console

Removal Procedure

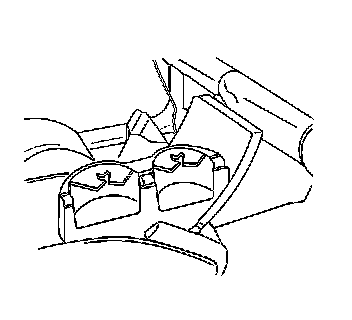

1. Remove the retainers fastening the cup holder to the center console.




2. Remove the cup holder.

Installation Procedure

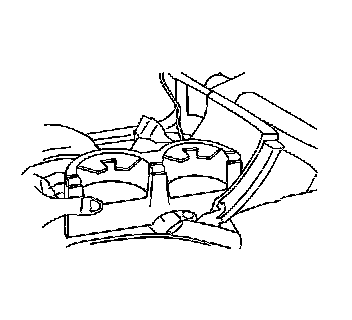

1. Install the cup holder.






Notice: Refer to Fastener Notice in Service Precautions.

2. Install the fasteners that retain the cup holder.

Tighten the fasteners to 2 N.m (18 lb in).
