Assist Rod Replacement - Hood

Assist Rod Replacement - Hood

Removal Procedure

Caution: Refer to Hood Hold Open Device Caution in Service Precautions.




1. Open and support the hood.
2. Using a small flat bladed tool, release the clip retaining the hood assist rod to the lower assist rod ball stud.
3. Using a small flat bladed tool, release the clip retaining the hood assist rod to the upper assist rod ball stud.

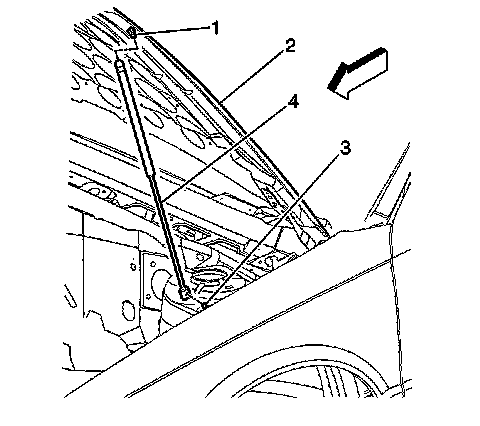

4. Remove the hood assist rod (4) from the vehicle.

Installation Procedure




1. Press the hood assist rod (4) onto the upper hood assist rod ball stud (1).
2. Press the hood assist rod (4) onto the lower hood assist rod ball stud (3).
3. Ensure that both release clips are fully seated on the hood assist rod (4).
4. Close the hood.
