Fascia Extension Replacement - Front

Fascia Extension Replacement - Front

Removal Procedure

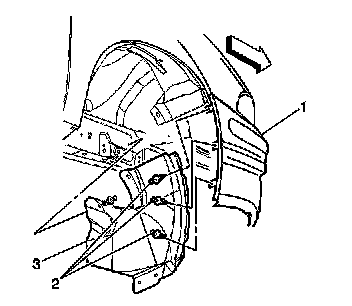

1. Remove the push-in retainers (2) from the fascia extension (3).
2. Remove the fascia extension (3) from the vehicle.

Installation Procedure




1. Position the front fascia extension (3) to the vehicle.
2. Install the push-in retainers (2) to the fascia extension (3).
