Speaker Replacement - Front Lower

SPEAKER REPLACEMENT - FRONT LOWER

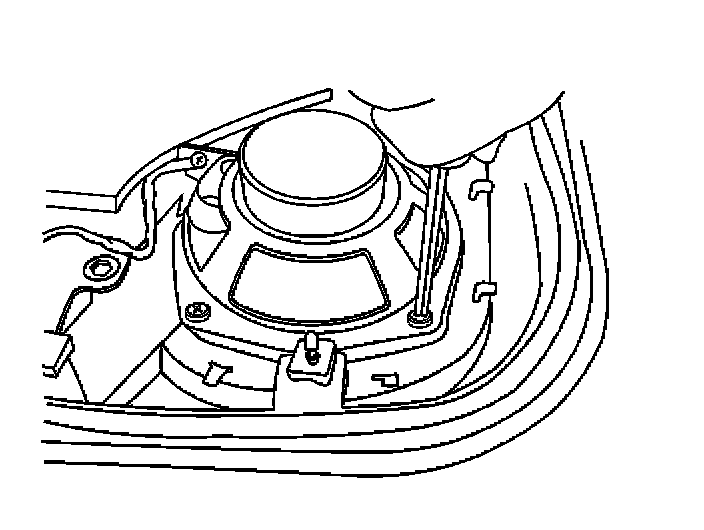

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Disconnect the speaker electrical connector.
3. Remove the speaker fasteners.
4. Remove the speaker.

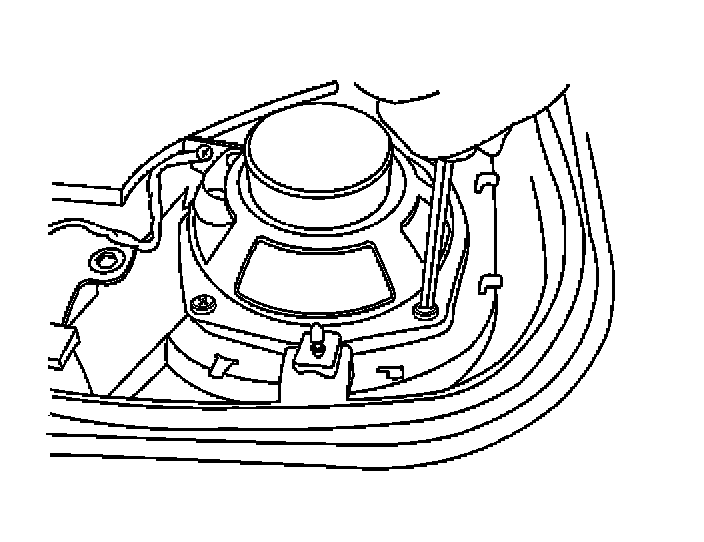

INSTALLATION PROCEDURE




1. Install the speaker into the door with the electrical connector facing upward.
2. Install the speaker fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the speaker fasteners to 1.8 N.m (16 lb in).

3. Connect the electrical connector.
4. Install the door trim panel.
