Steering Knuckle Replacement

STEERING KNUCKLE REPLACEMENT

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the bearing/hub assembly.
3. Remove the front lower control arm ball stud.
4. Remove the outer tie rod end from the steering knuckle.

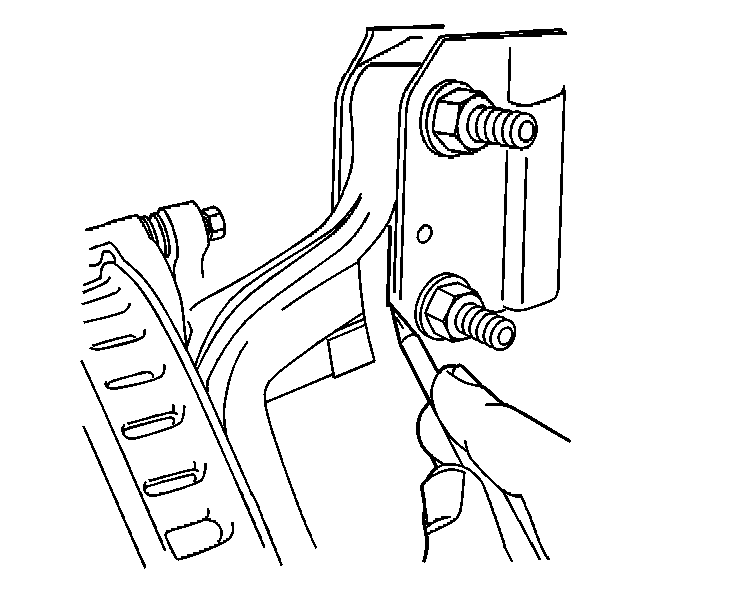

5. Scribe the strut to the knuckle.

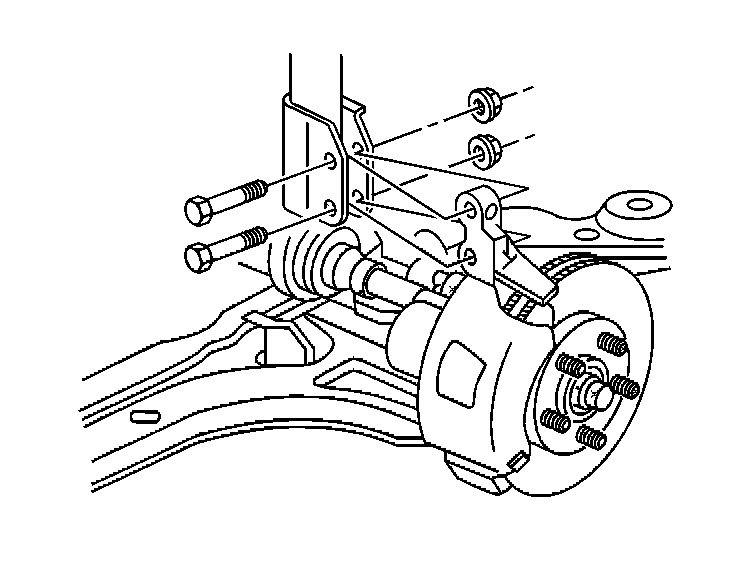

6. Remove the bolts and nuts attaching the strut to the knuckle.
7. Remove the knuckle from the vehicle.

INSTALLATION PROCEDURE
1. Install the knuckle to the vehicle.

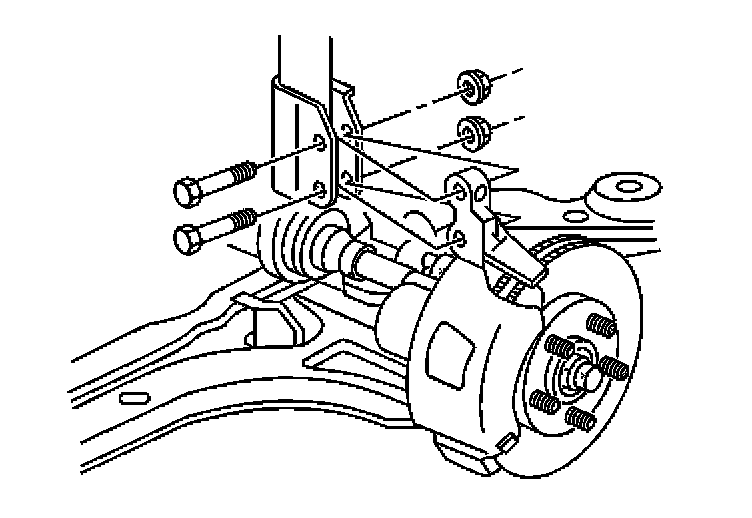

2. Install the bolts and nuts attaching the strut to the knuckle.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the strut to knuckle bolts to 122 N.m (90 lb ft).

3. Install the outer tie rod to the steering knuckle.
4. Connect the front lower control arm ball stud to the knuckle.
5. Install the front wheel drive shaft bearing.
6. Lower the vehicle.
7. Inspect the front wheel alignment and adjust if necessary.
