Heater Hose Replacement - Outlet
TOOLS REQUIREDJ 38185 Hose Clamp Pliers
REMOVAL PROCEDURE
1. Drain the cooling system.
2. Remove the fuel injector sight shield.

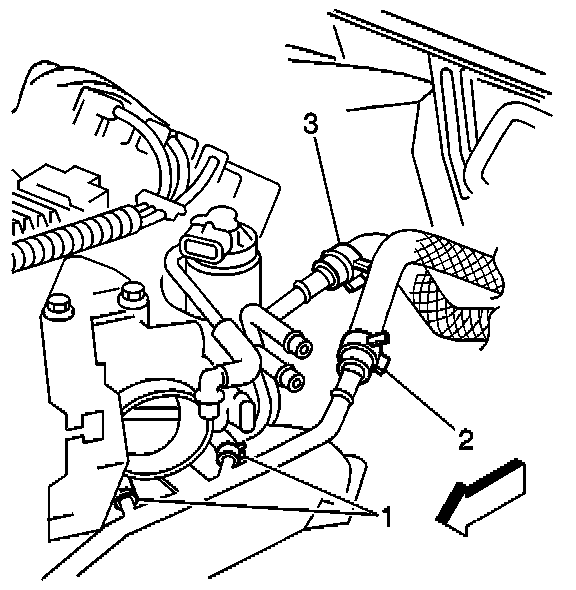

3. Use J 38185 in order to reposition the heater hose outlet clamp.
4. Disconnect the heater outlet hose (2) from the outlet pipe.
5. Use J 38185 in order to reposition the heater core outlet hose clamp.
6. Disconnect the heater outlet hose from the heater core.
7. Remove the heater outlet hose.
INSTALLATION PROCEDURE
1. Install the heater outlet hose.
2. Connect the heater outlet hose to the heater core.
3. Use J 38185 in order to reposition the heater core hose outlet clamp.

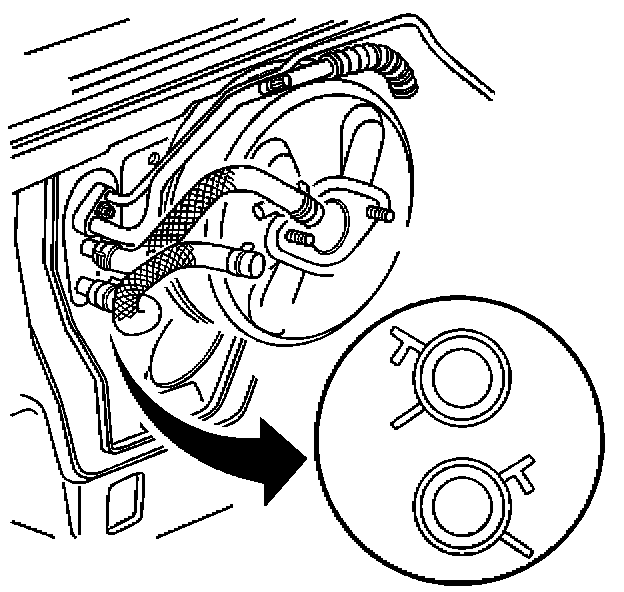

IMPORTANT: Reposition heater core hose clamps in the indicated location.

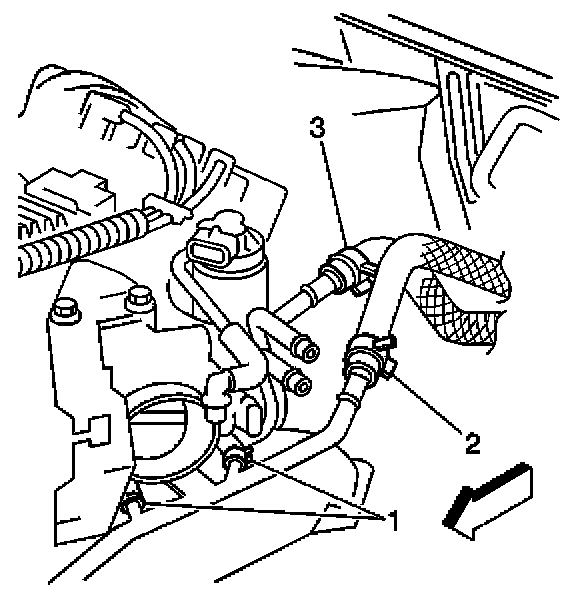

4. Connect the heater outlet hose (2) to the outlet pipe.
5. Use J 38185 in order to reposition the heater hose outlet clamp.
6. Install the fuel injector sight shield.
7. Refill the cooling system.
